Center Speaker Inspection
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

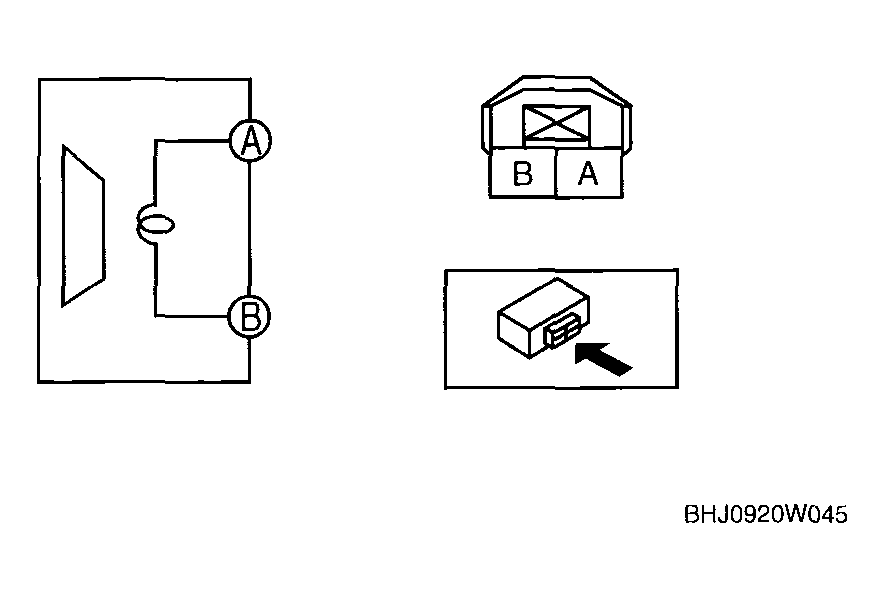

- Verify the resistance between center speaker terminals.
- If the resistance is not within the specification, replace the center speaker.
Resistance
3.6 ohms
- Connect a 1.5 V
battery to the center speaker and verify that noise is heard from the center speaker.
- If no noise is heard, replace the center speaker.
