Wiper Motor Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION  .)
  4. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  5. Disconnect the connector.
  6. Remove the bolts.
  7. Remove the nut.
  8. Install in the reverse order of removal.

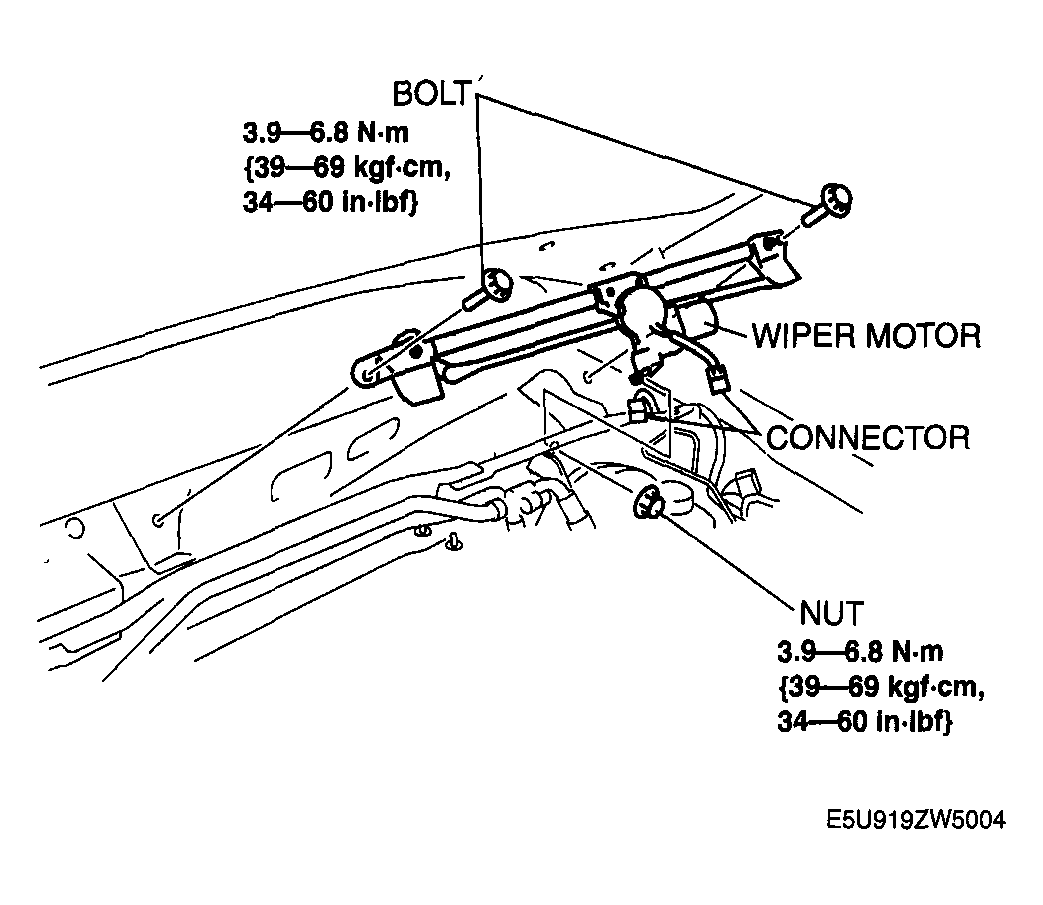

    Fig 1: View Of Wiper Motor And Components With Torque Specifications
    G04323746Courtesy of MAZDA MOTORS CORP.
