Wiper Motor Inspection

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the wiper motor connector.
  2. Connect battery positive voltage to wiper motor terminal A or C, and ground to terminal F, then verify that the wipers operate as shown in Fig 1 .

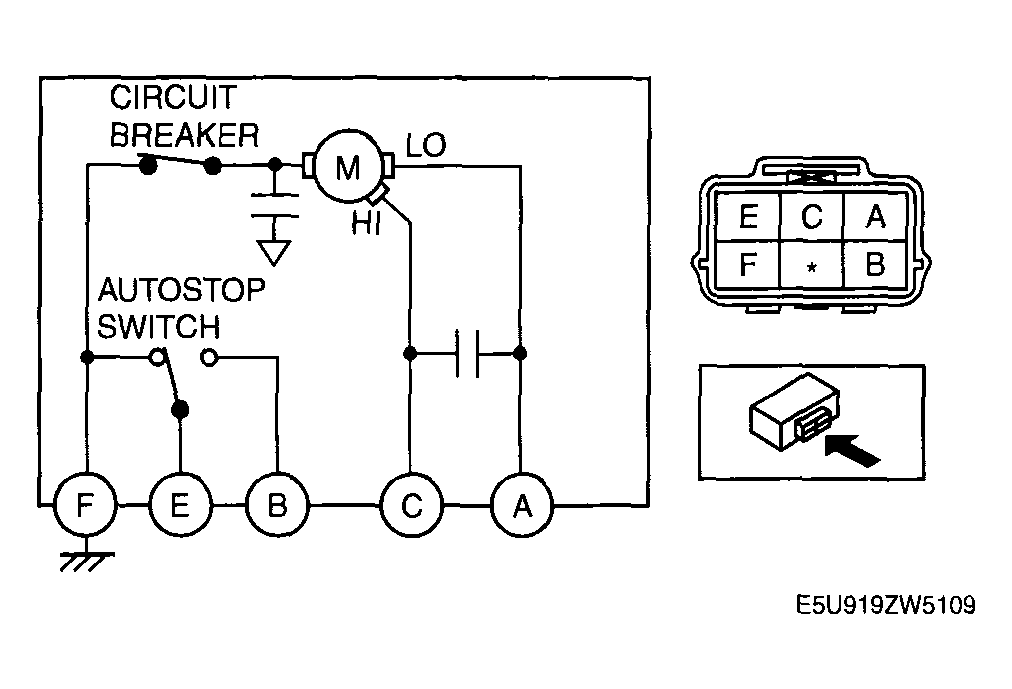

    Fig 1: Identifying Wiper Motor Circuit
    G04323750Courtesy of MAZDA MOTORS CORP.
    • If the wipers do not operate as indicated in Fig 1 , replace the wiper motor.
  3. Operate the wipers, disconnect battery positive voltage from terminal C, and then verify that the wipers stop.
  4. Connect wiper motor terminals E and A, and apply battery positive voltage to terminal B.
  5. Operate the wipers at low speed, and verify that they stop in the park position.
    • If there is any malfunction, replace the wiper motor.

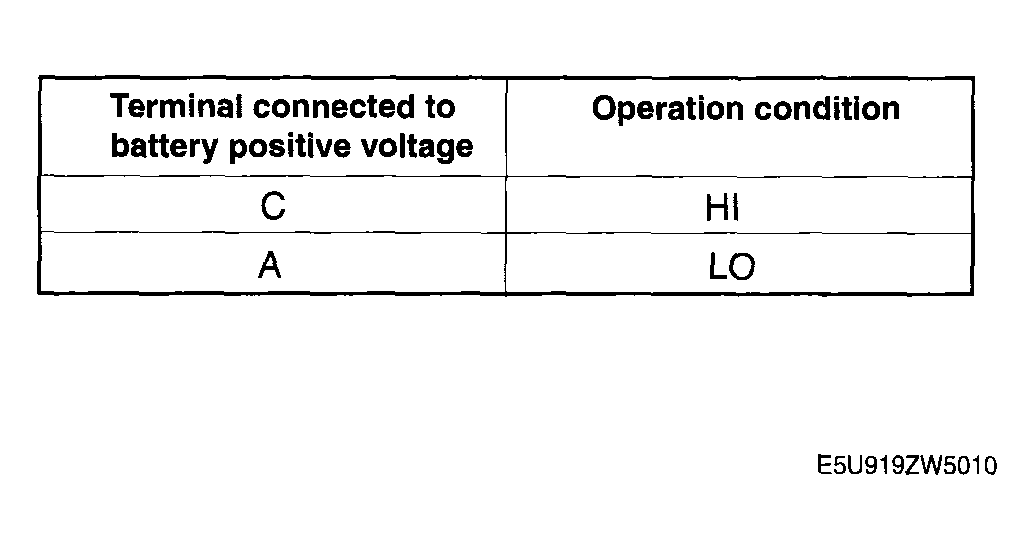

    Fig 2: Wiper Operation Condition Table
    G04323751Courtesy of MAZDA MOTORS CORP.
