Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  4. Disconnect the wiper and washer switch connector.
  5. Remove the screws, then remove the wiper and washer switch.
  6. Install in the reverse order of removal.

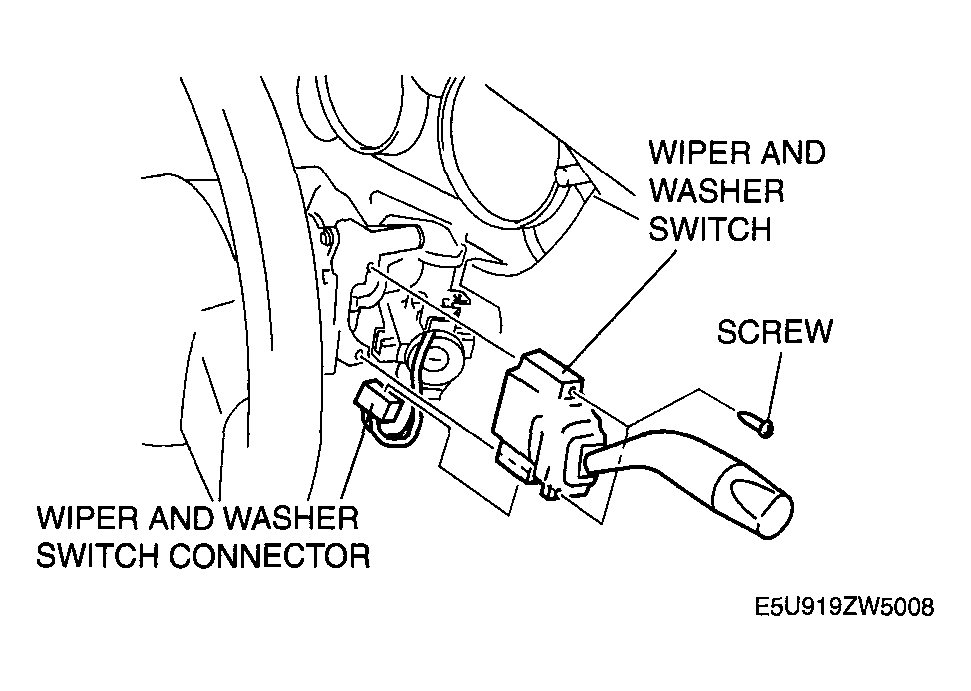

    Fig 1: Removing Wiper & Washer Switch
    G04323757Courtesy of MAZDA MOTORS CORP.
