Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the wiper and washer switch is as indicated in Fig 1 .
- If not as indicated in Fig 1 , replace the wiper and washer switch.

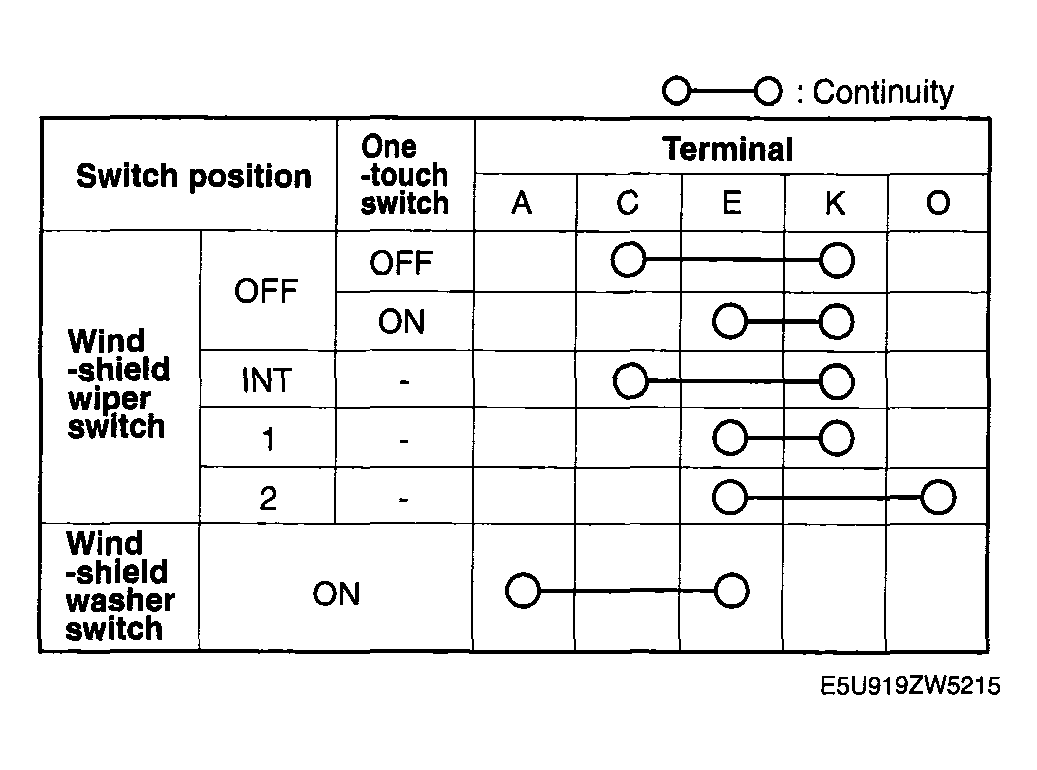

Fig 1: Wiper/Washer Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

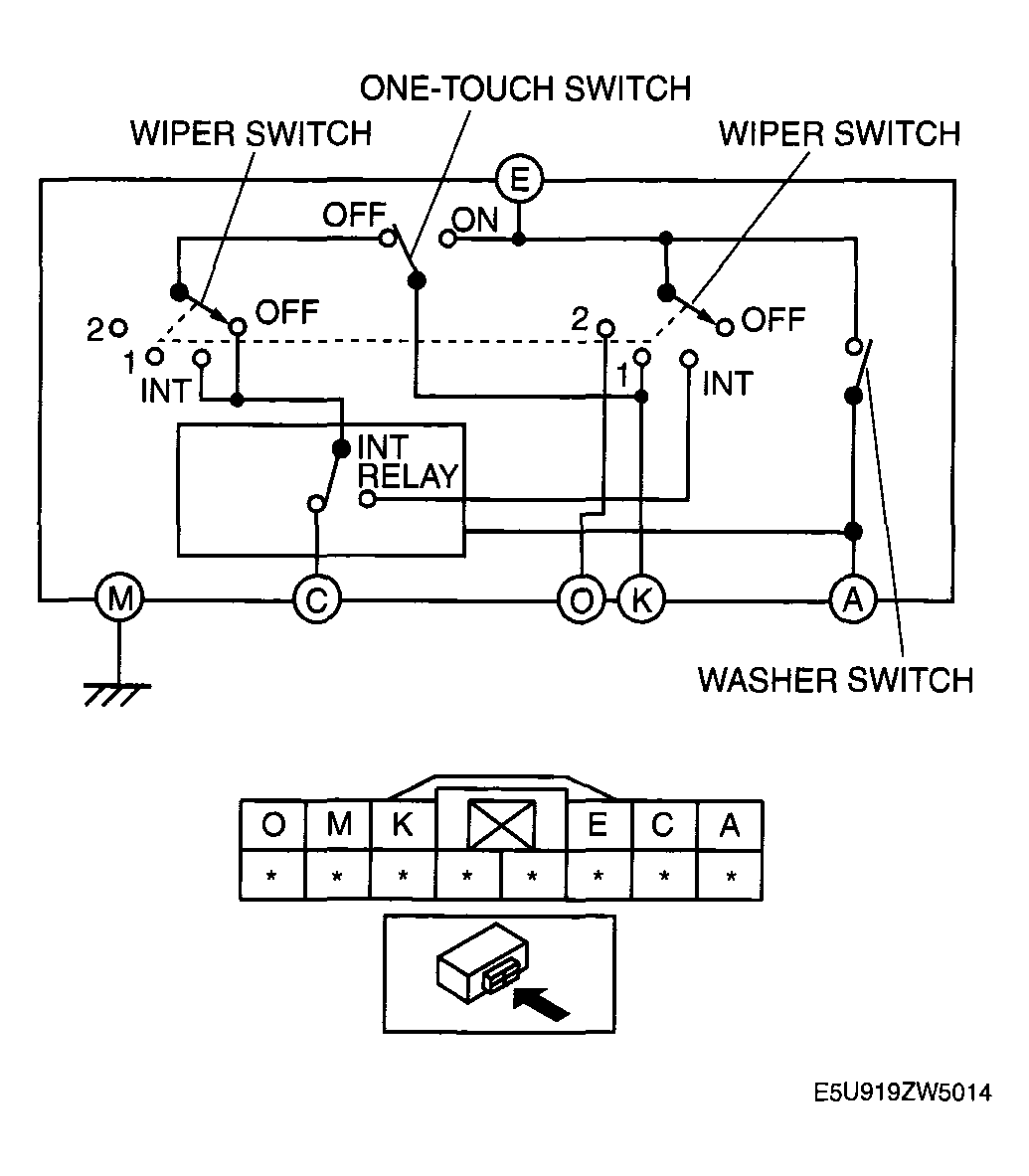

Fig 2: Identifying Wiper & Washer Switch Circuit
Courtesy of MAZDA MOTORS CORP.
