Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Disconnect the washer hose from joint pipe A.
  4. Remove the bolt and nut, then remove the washer tank.
  5. Disconnect the washer motor connector.
  6. Install in the reverse order of removal.

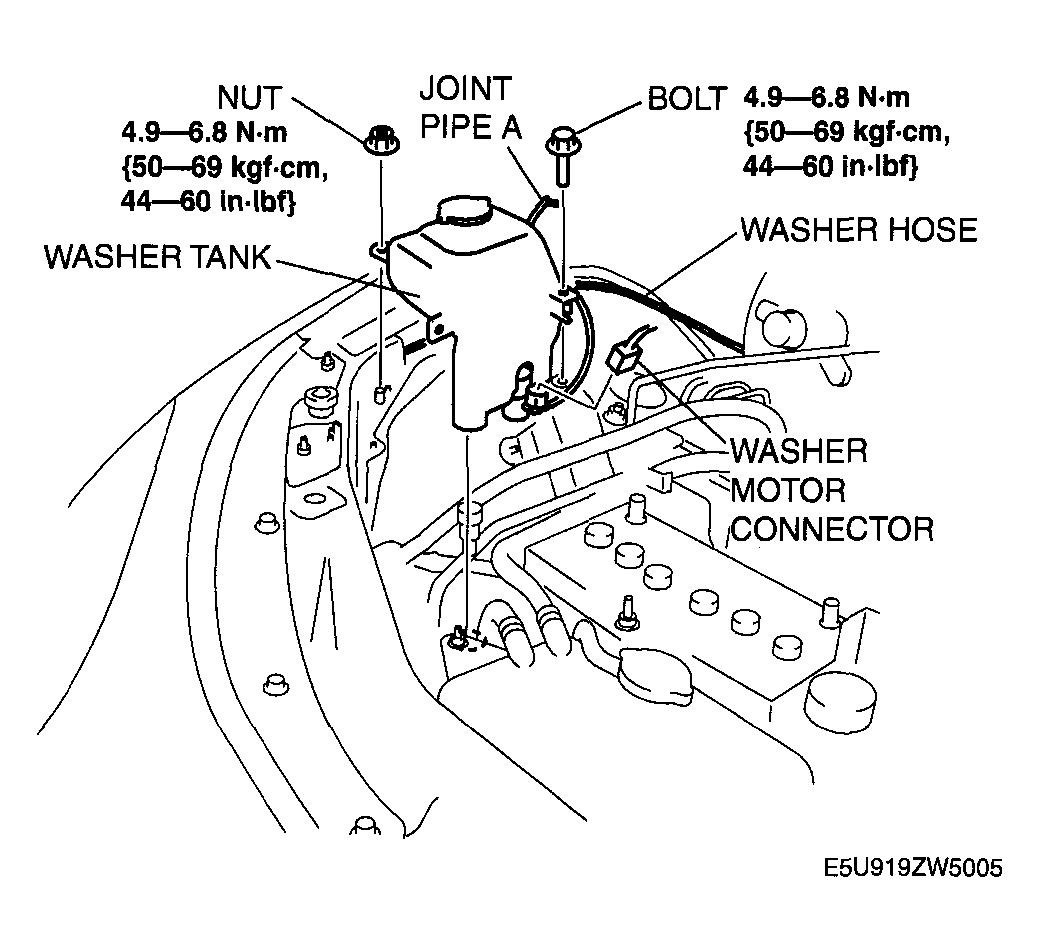

    Fig 1: Washer Tank With Torque Specifications
    G04323752Courtesy of MAZDA MOTORS CORP.
