Washer Motor Inspection
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

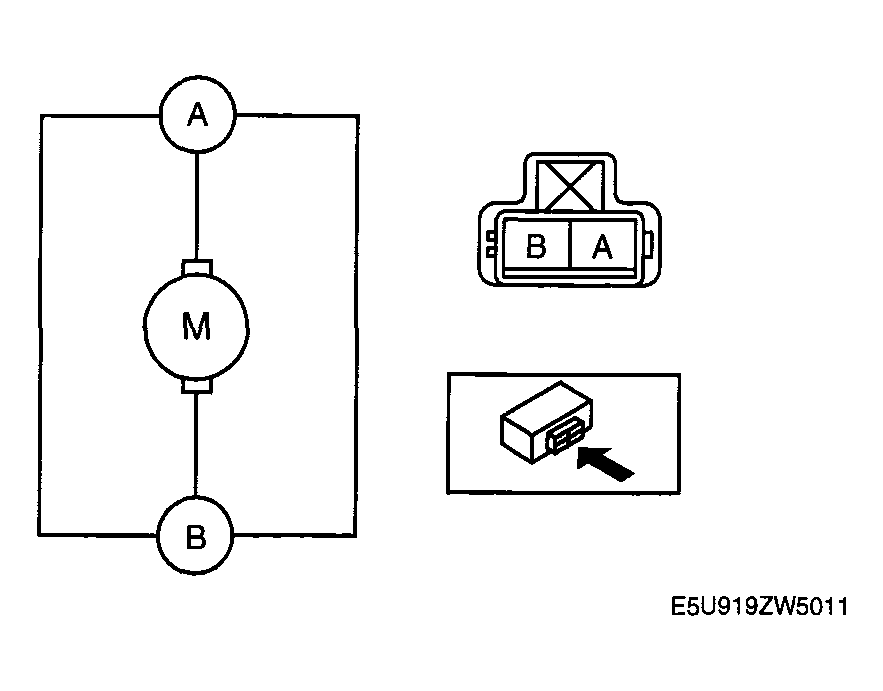

- Connect battery positive voltage to washer motor terminal A and terminal B to ground.
- Verify that the washer motor operates normally.
- If there is any malfunction, replace the washer motor.
Courtesy of MAZDA MOTORS CORP.
