A/C Compressor Pulley Removal Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C compressor pulley using the SST (49 0839 425C) .
CAUTION:
- Be careful that the SST (49 0839 425C) tabs do not hang over the stator.

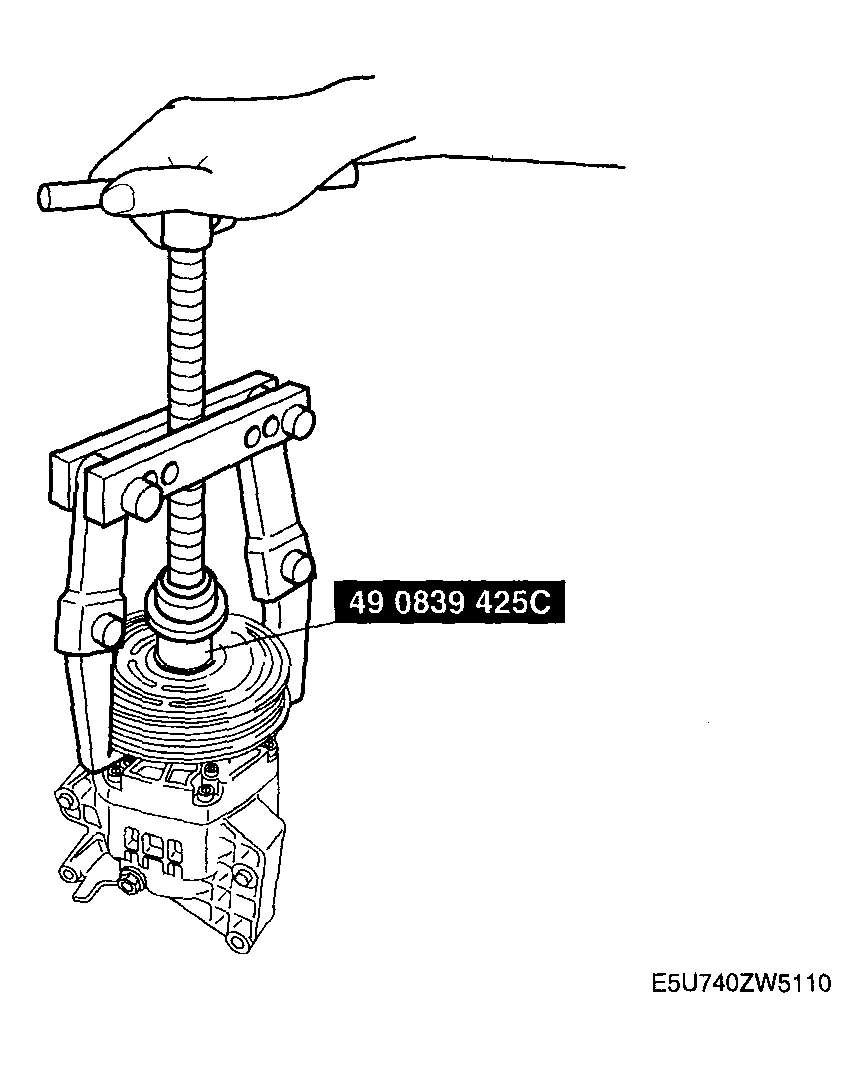

Fig 1: Removing A/C Compressor Pulley (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

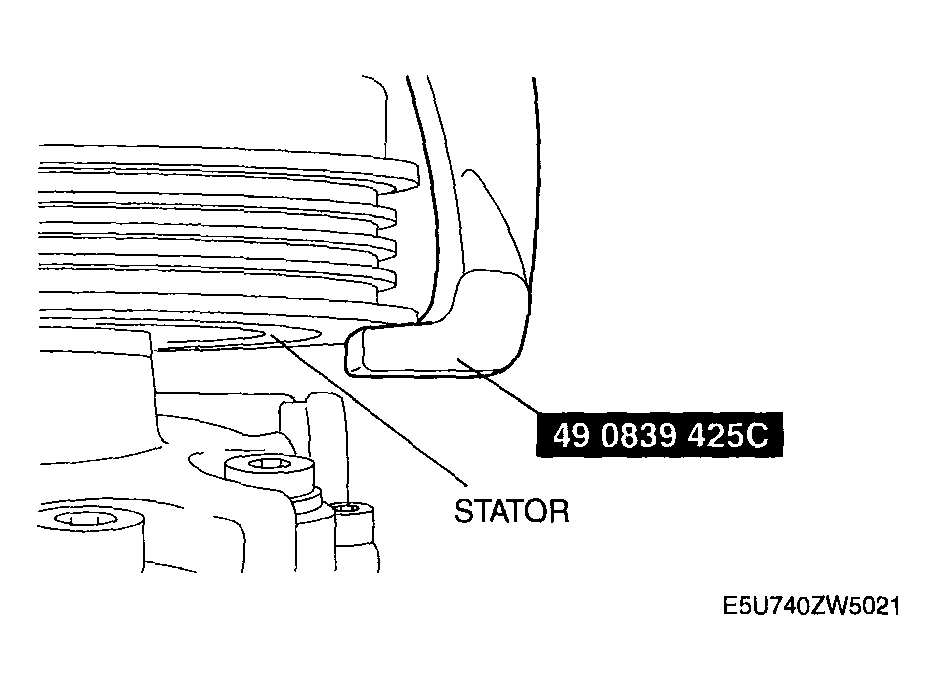

Fig 2: Removing A/C Compressor Pulley (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
