Part Inspection
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Verify that the battery is fully charged.

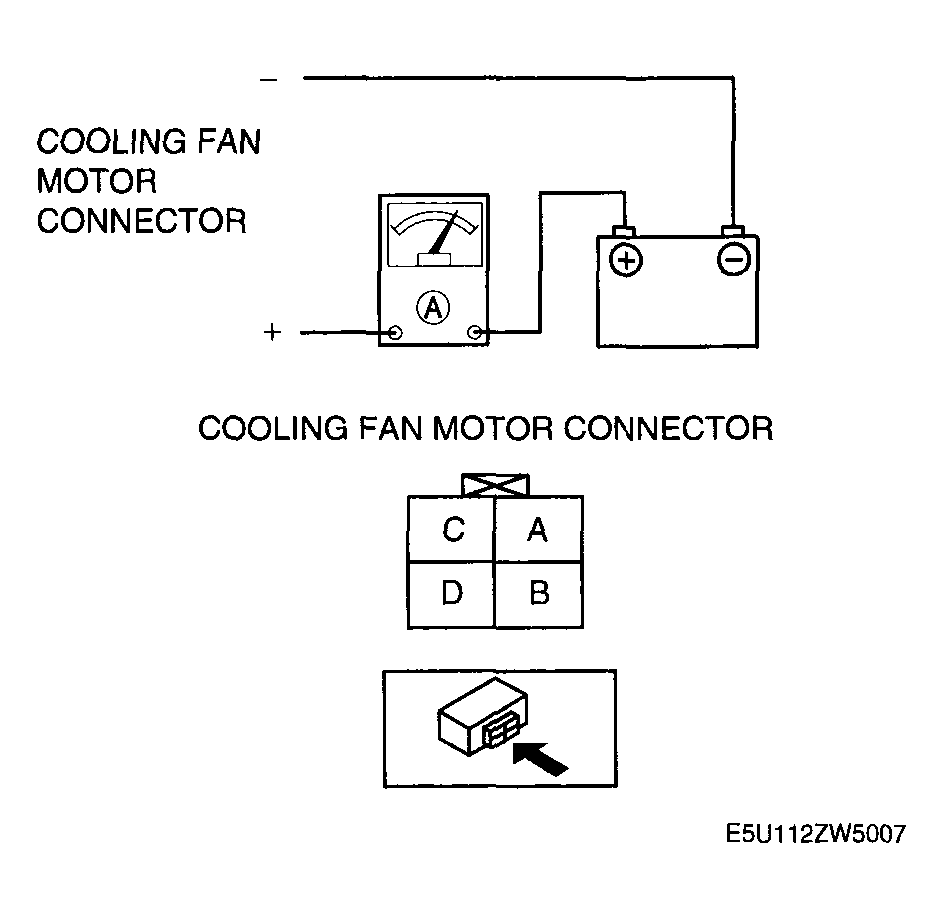

- Install a tester and battery to the cooling fan motor connector (4 terminals) as shown in Fig 1
.FAN MOTOR OPERATION TABLE
Fan motor rotation speed Connection terminal Positive Negative High A and C B and D Middle C B and D Low C B - Verify that fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Cooling fan motor current
High: 9.0-12.0 A
Middle: 6.4-9.4 A
Low: 4.8-7.8 A
