Back Trim Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION  .)
    2. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION  .)
    3. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION  .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION  .)
    5. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION  .)
    6. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION  .)
  2. Pull the open hook lever outward and remove it while pinching the tabs as shown in Fig 1 .

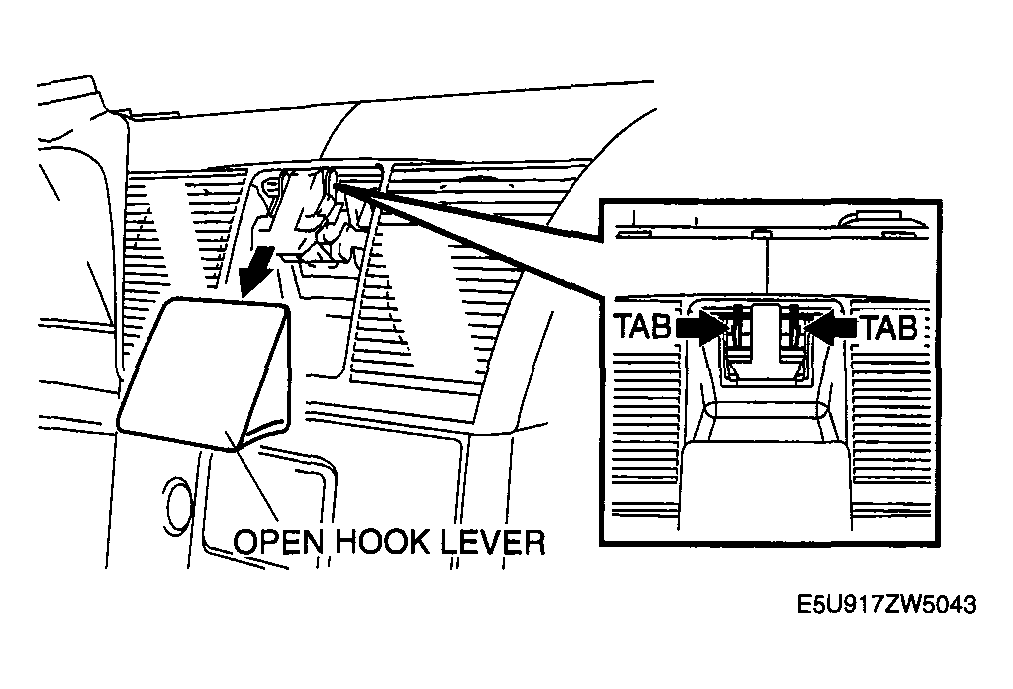

    Fig 1: Removing Rear Seat Back Bar Garnish
    G04323662Courtesy of MAZDA MOTORS CORP.
  3. Remove the fasteners.

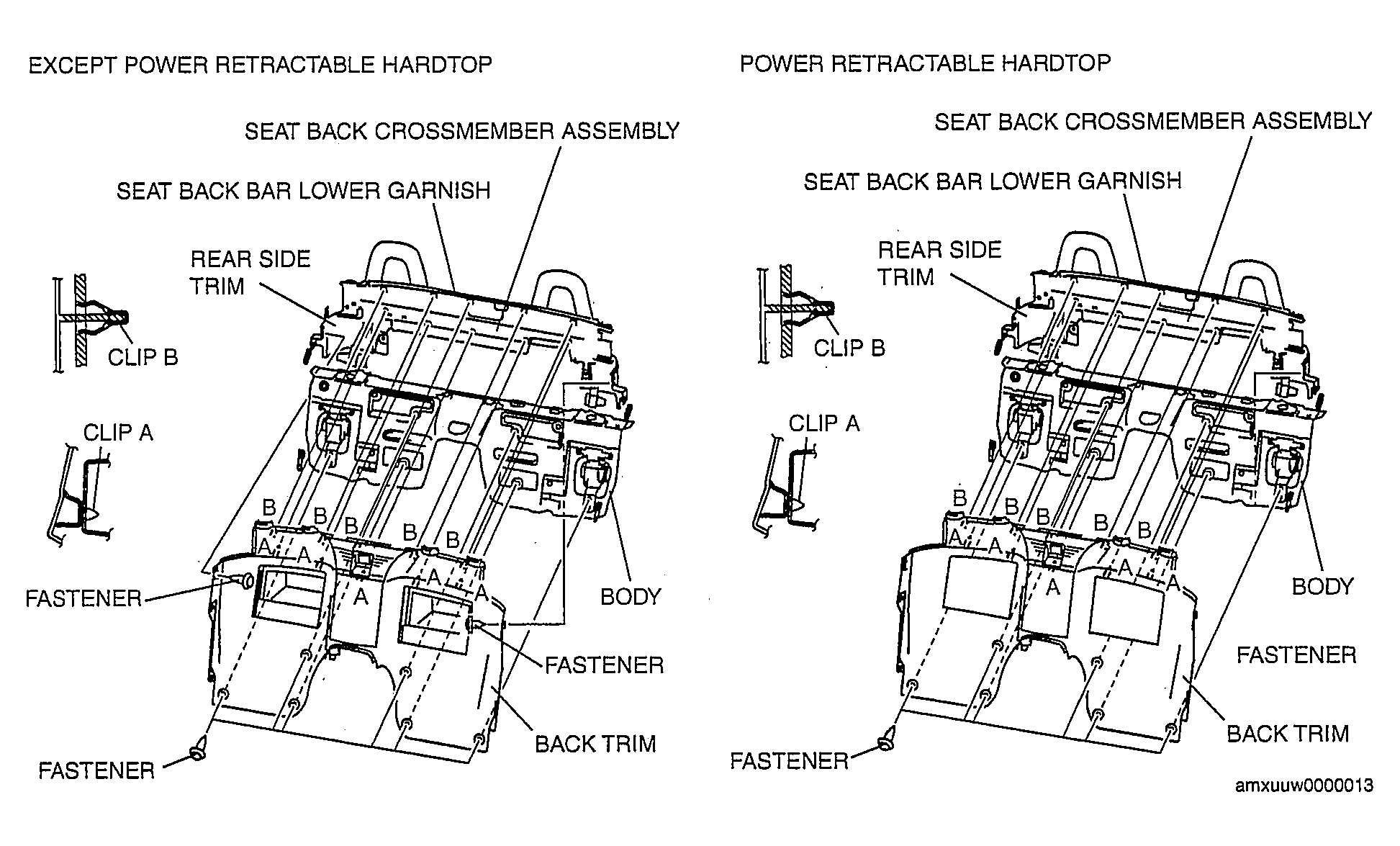

    Fig 2: Identifying Seat Back Trim
    G00455486Courtesy of MAZDA MOTORS CORP.
  4. Pull the back trim outward and detach clips A and B.
  5. Remove the back trim.
  6. Install in the reverse order of removal.
