No. 1 Melting Of Main Or Other Fuses

MELTING OF MAIN OR OTHER FUSES [AJ]

1	Melting of main or other fuses

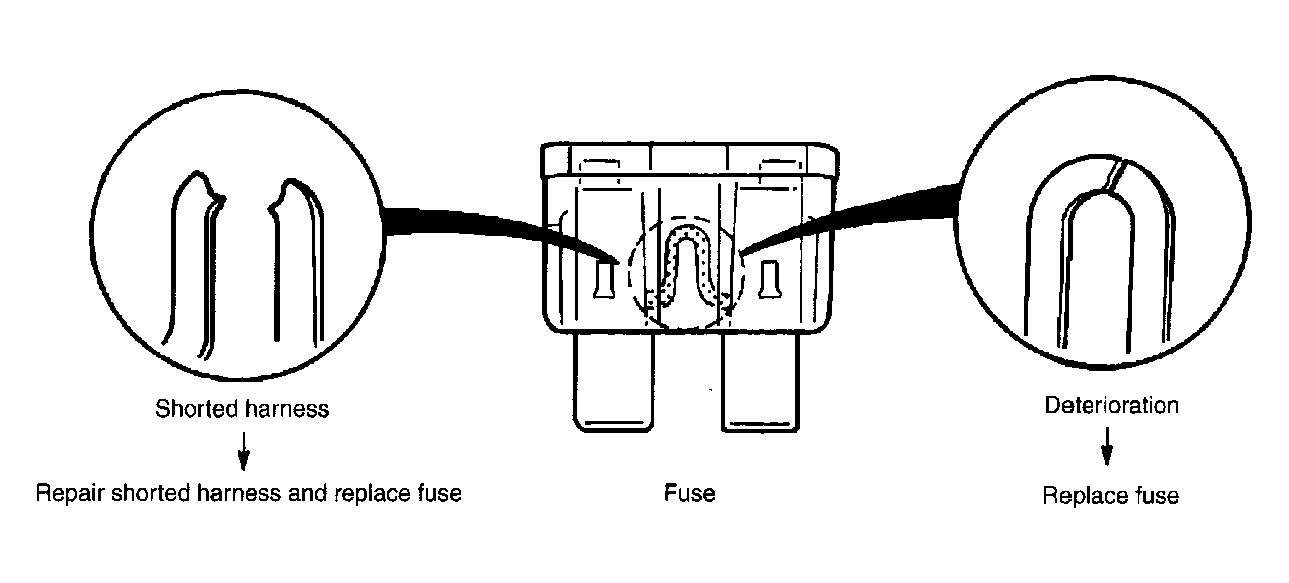

[TROUBLESHOOTING HINTS]  Inspect condition of fuse.

DAMAGED FUSE REFERENCE

Damaged fuse	Related wiring harness
MAIN	MAIN fuse  BTN fuse IG KEY2 fuse IG1 fuse FAN1 fuse FAN2 fuse Generator
BTN	BTN fuse  ROOM fuse
ROOM	ROOM fuse  DLC-2
IG KEY2	IG KEY2 fuse  Ignition switch Starter relay
IG KEY1	IG KEY1 fuse  Ignition switch ENGINE fuse Starter relay
ENGINE	ENGINE fuse Fuel pump relay Ignition coils Capacitor
FUEL PUMP	FUEL PUMP fuse  Fuel pump relay Main relay
IG1	IG1 fuse  IG1 fuse
FAN1	FAN1 fuse  Cooling fan relay
FAN2	FAN2 fuse  Cooling fan relay
ETC	ETC fuse  Drive-by-wire relay
INJ	INJ fuse  Drive-by-wire relay PCM Fuel injectors
ENG BAR	ENG BAR fuse  Purge solenoid valve VAD control solenoid valve EGR boost sensor solenoid valve MAF/IAT sensor EGR valve OCV (RH) OCV (LH) EVAP system leak detection pump
ENG BB	ENG BB fuse  Cooling fan relay
If malfunction remains, refer to related Service Bulletins and/or On-line Repair Information and perform repair or diagnosis. If vehicle is repaired, troubleshooting completed. If vehicle is not repaired or additional diagnostic information is not available, reprogram PCM if later calibration is available. Retest.
