Mazda
>>
2007
>>
6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System (AJ]
>>
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

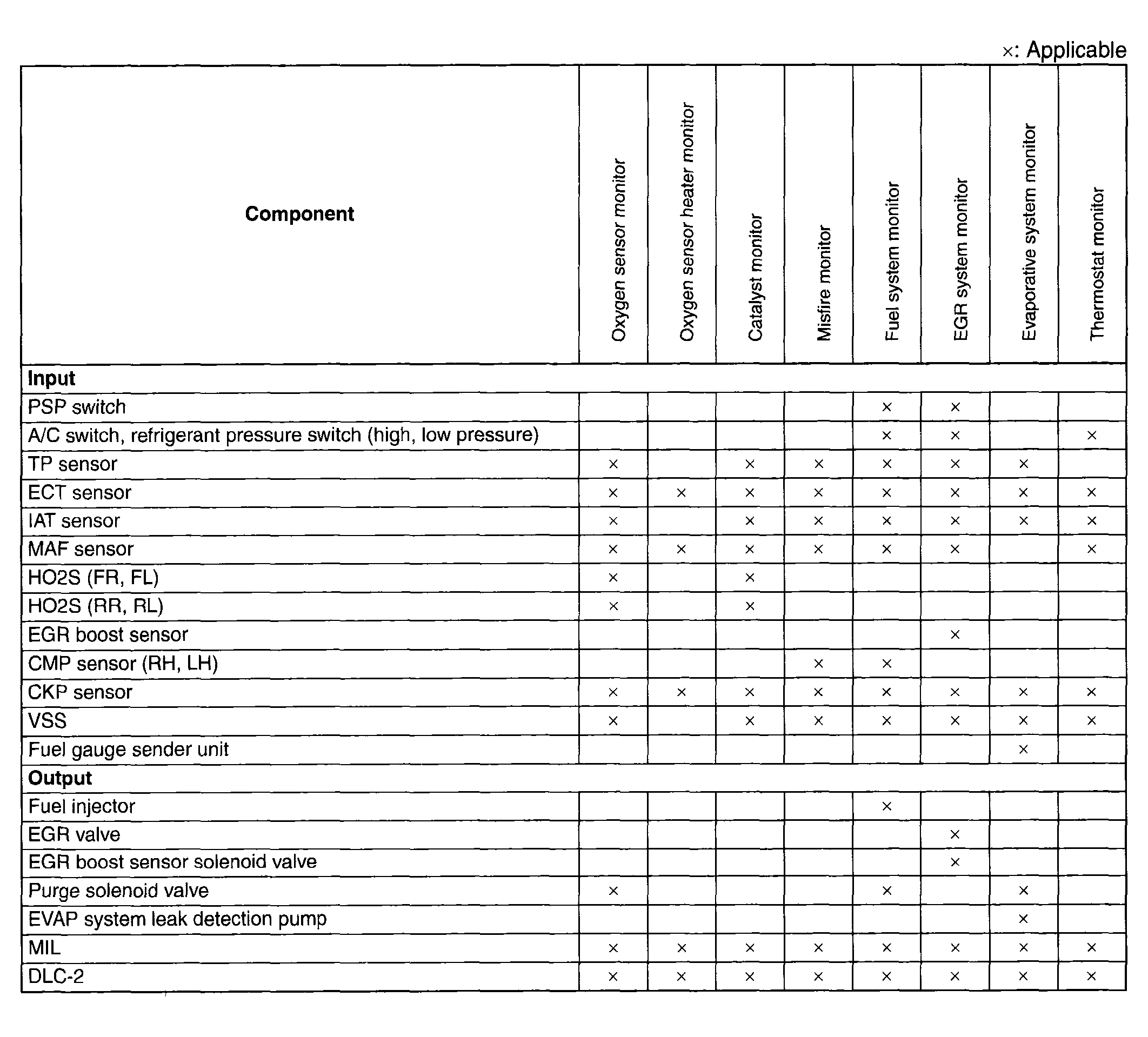

Fig 1: Monitoring System And Control System Device Relationship Chart (AJ)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
