Ignition Coil Removal/Installation: L3

  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate.
  3. Remove in the order indicated in the table.

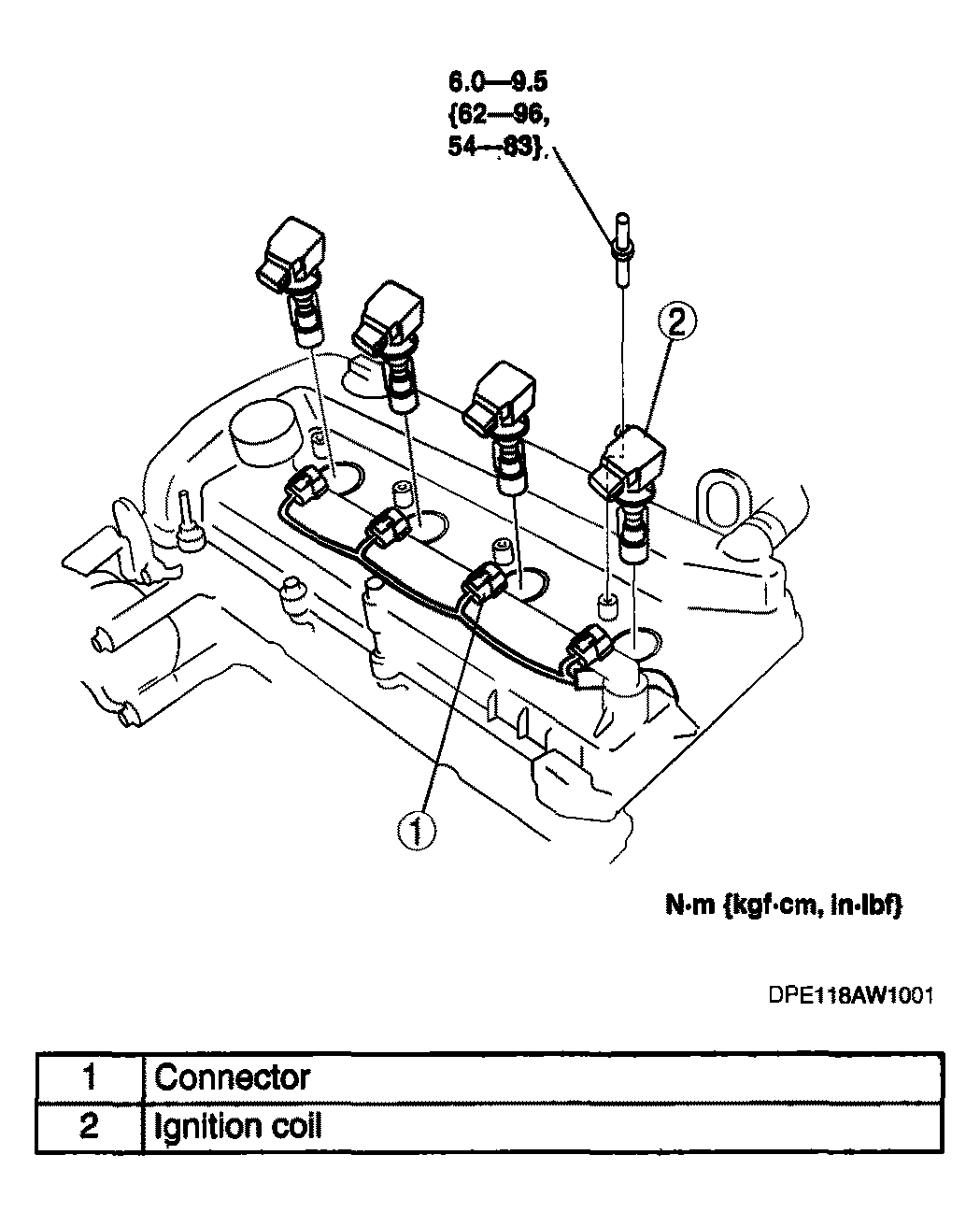

    Fig 1: Ignition Coil & Torque Specification (L3)
    G04325050Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
