6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (AJ)
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
CMP sensor signal (+)
>>
Vehicle condition
Vehicle condition
Idle after warm up (no load) (-)

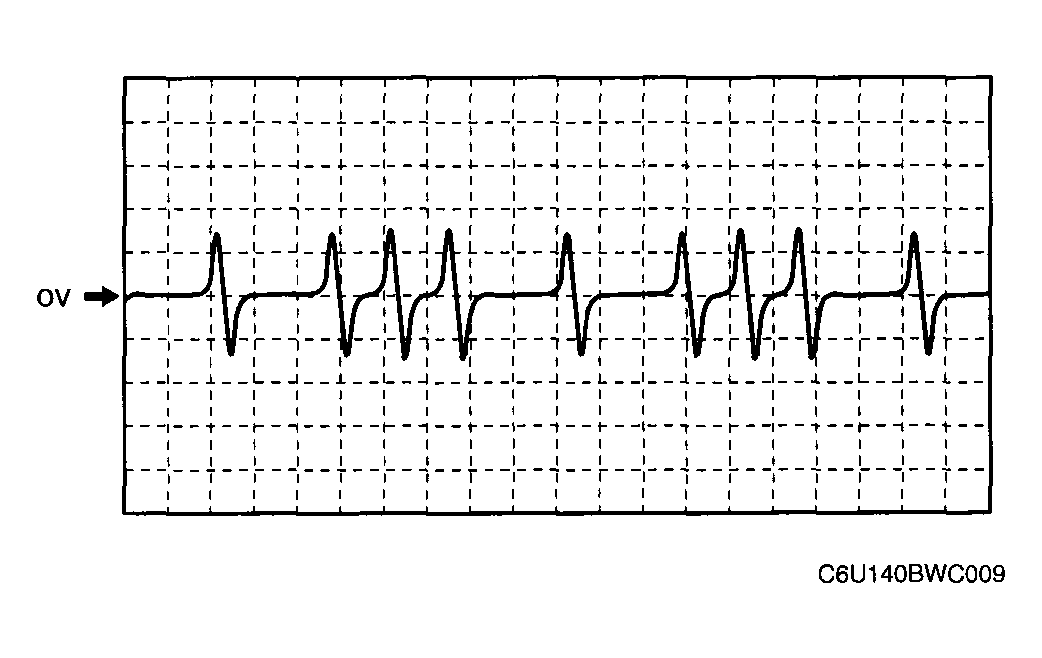

Fig 1: Identifying CMP Sensor Signal - Blinking Pattern
Courtesy of MAZDA MOTORS CORP.
Idle after warm up (no load)

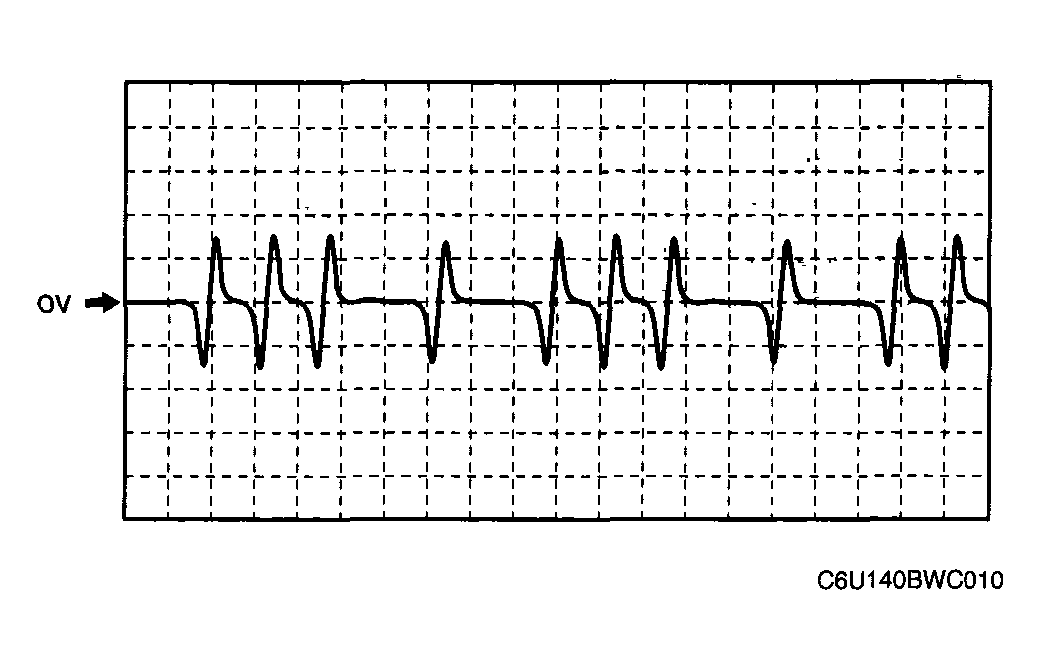

Fig 1: Identifying CMP Sensor Signal - Blinking Pattern
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
