HO2S circuit open/short inspection (sensor): Notes

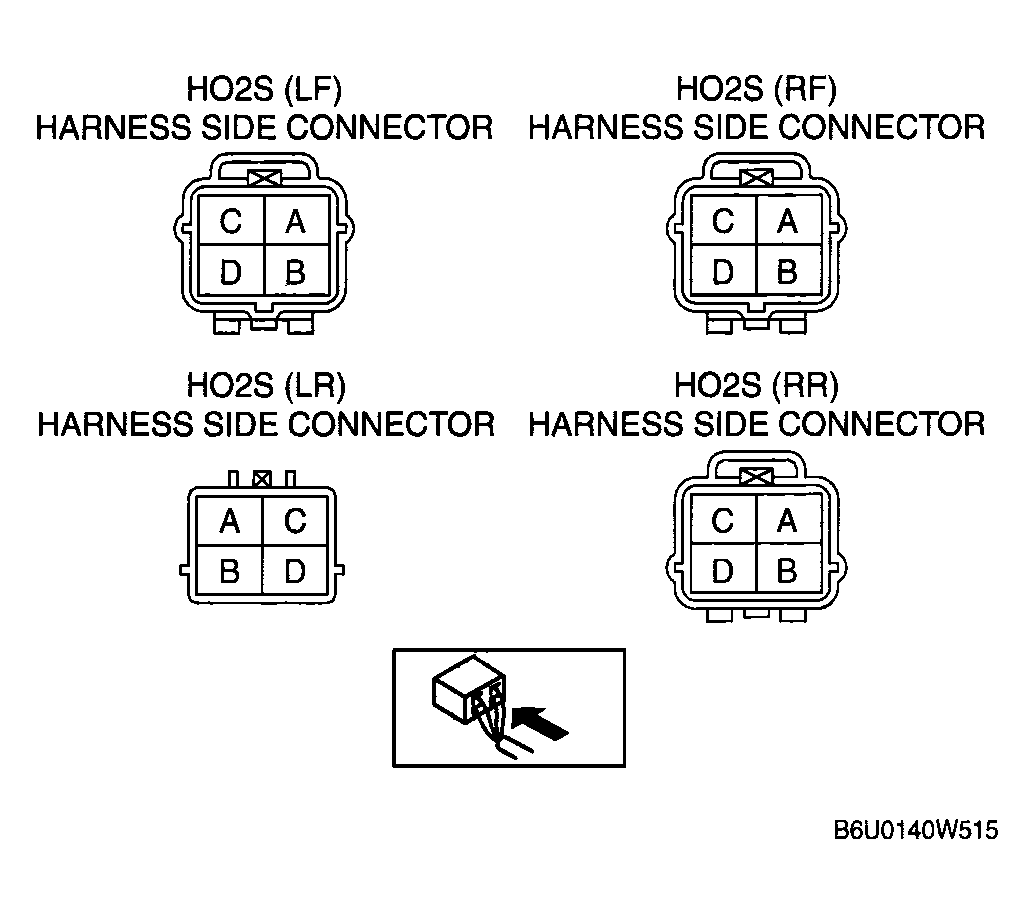

Fig 1: Identifying HO2S Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

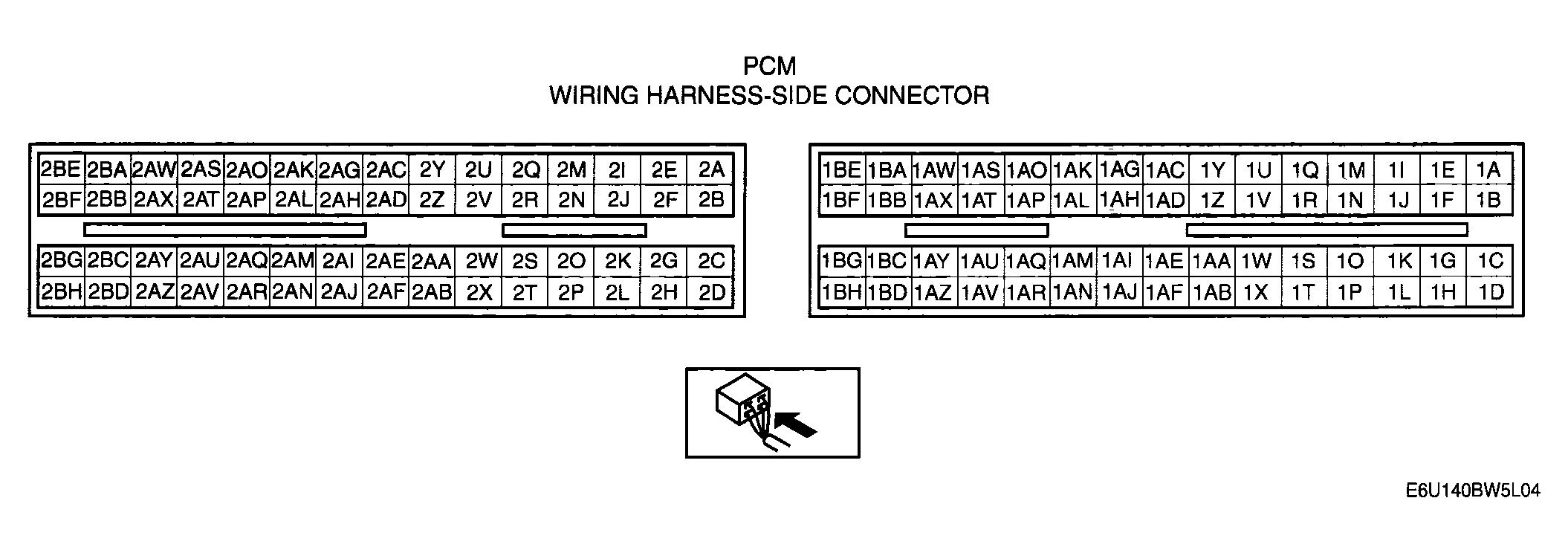

Fig 2: PCM Connector Terminal Identification

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector.
2. Disconnect the HO2S connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
