Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for open or short circuit (continuity check).

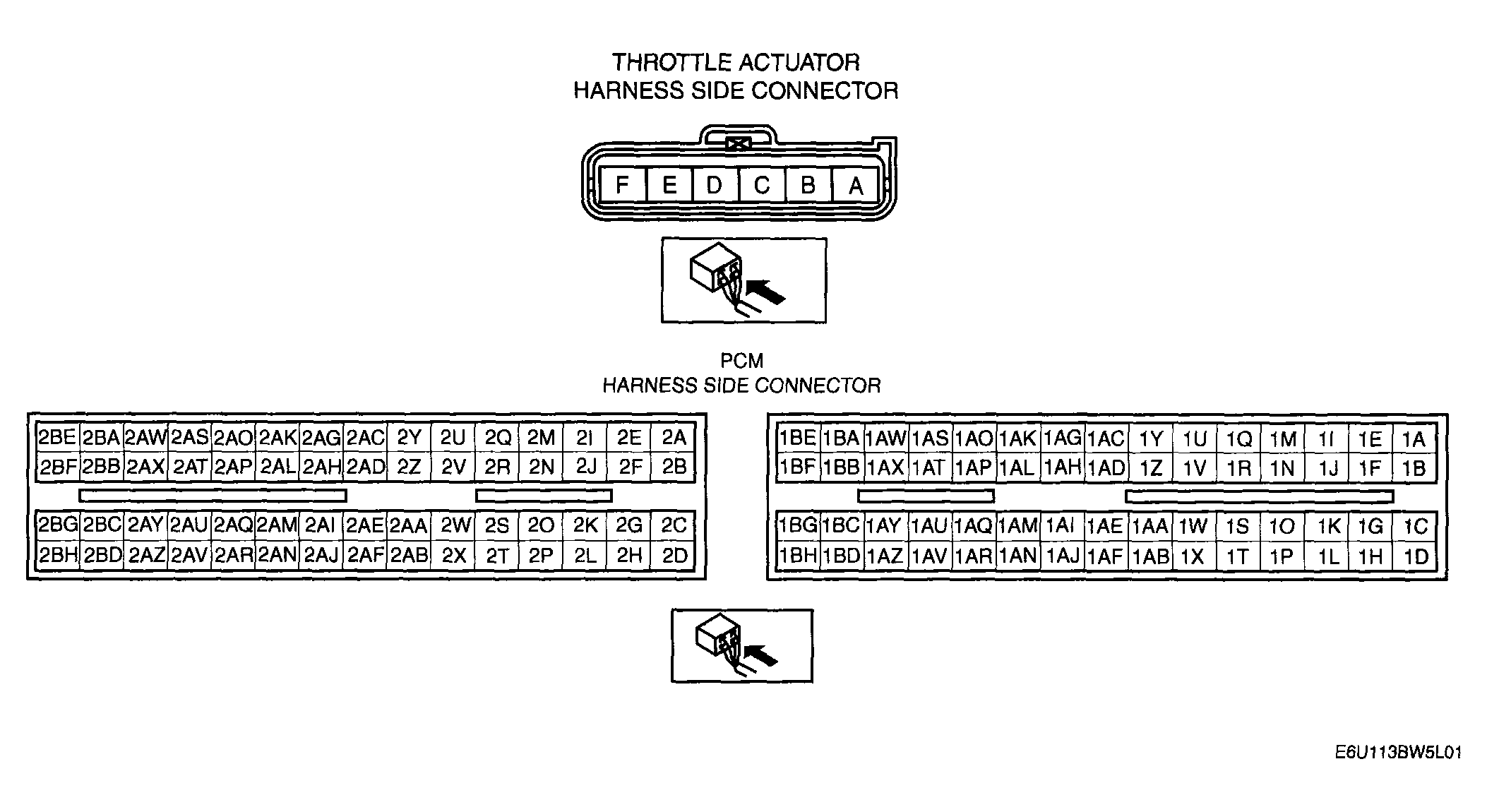

    Fig 1: PCM Connector Terminal Identification
    G04324771Courtesy of MAZDA MOTORS CORP.
