Intake Manifold Installation Note

  1. Tighten the intake manifold installation bolts in the order indicated.

    Tightening torque

    8-12 N.m {82-122 kgf.cm, 72-106 in.lbf}

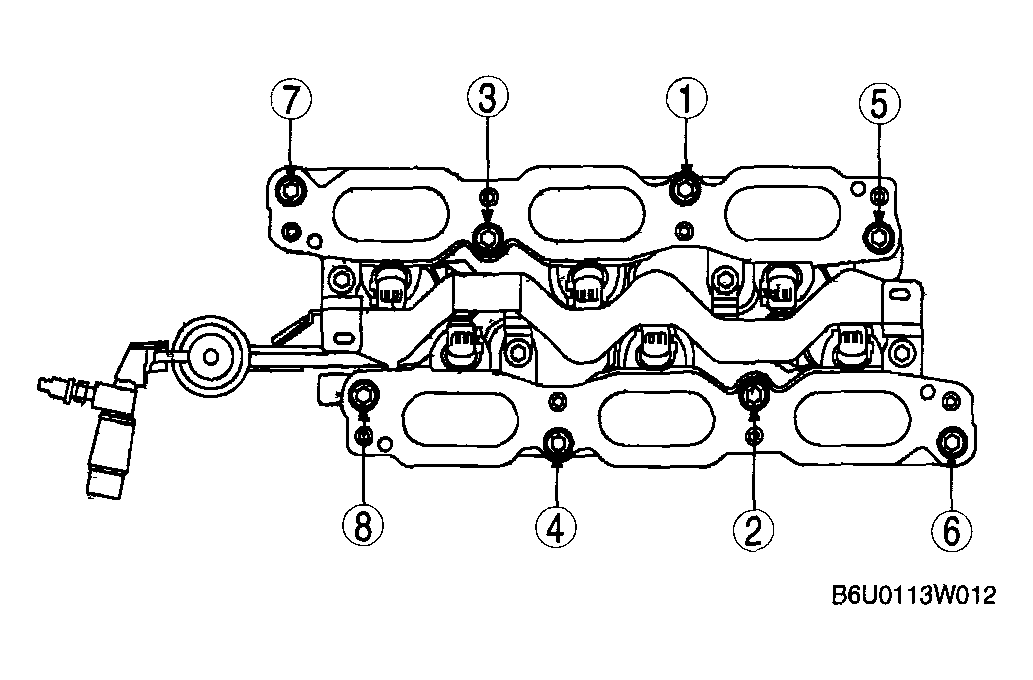

    Fig 1: Intake Manifold Bolts Tightening Sequence
    G04324763Courtesy of MAZDA MOTORS CORP.
