Intake Air System Location Index

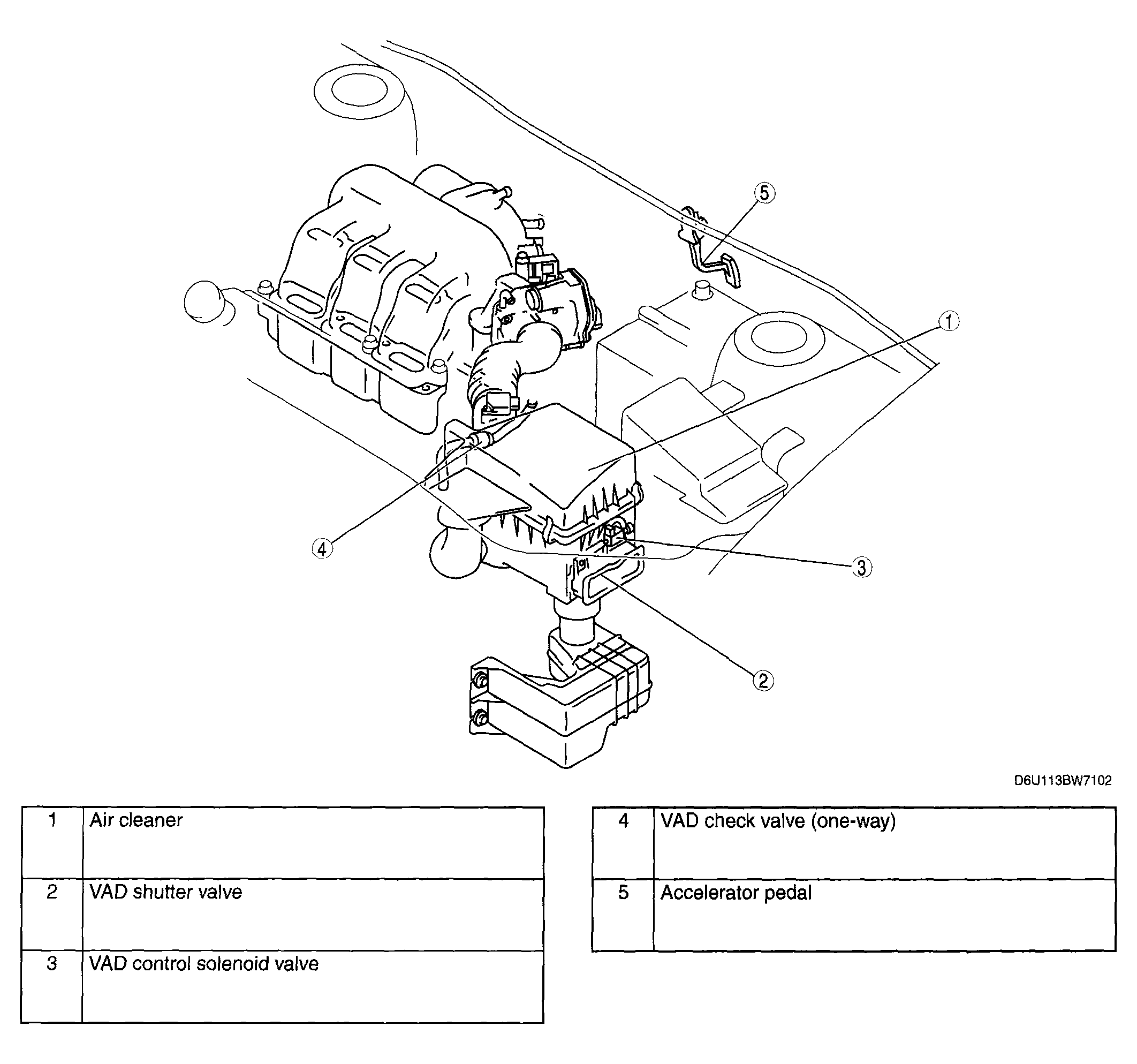

Fig 1: Identifying Intake Air System [AJ]

G04324759

Courtesy of MAZDA MOTORS CORP.
