Starter Disassembly/Assembly

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

L3

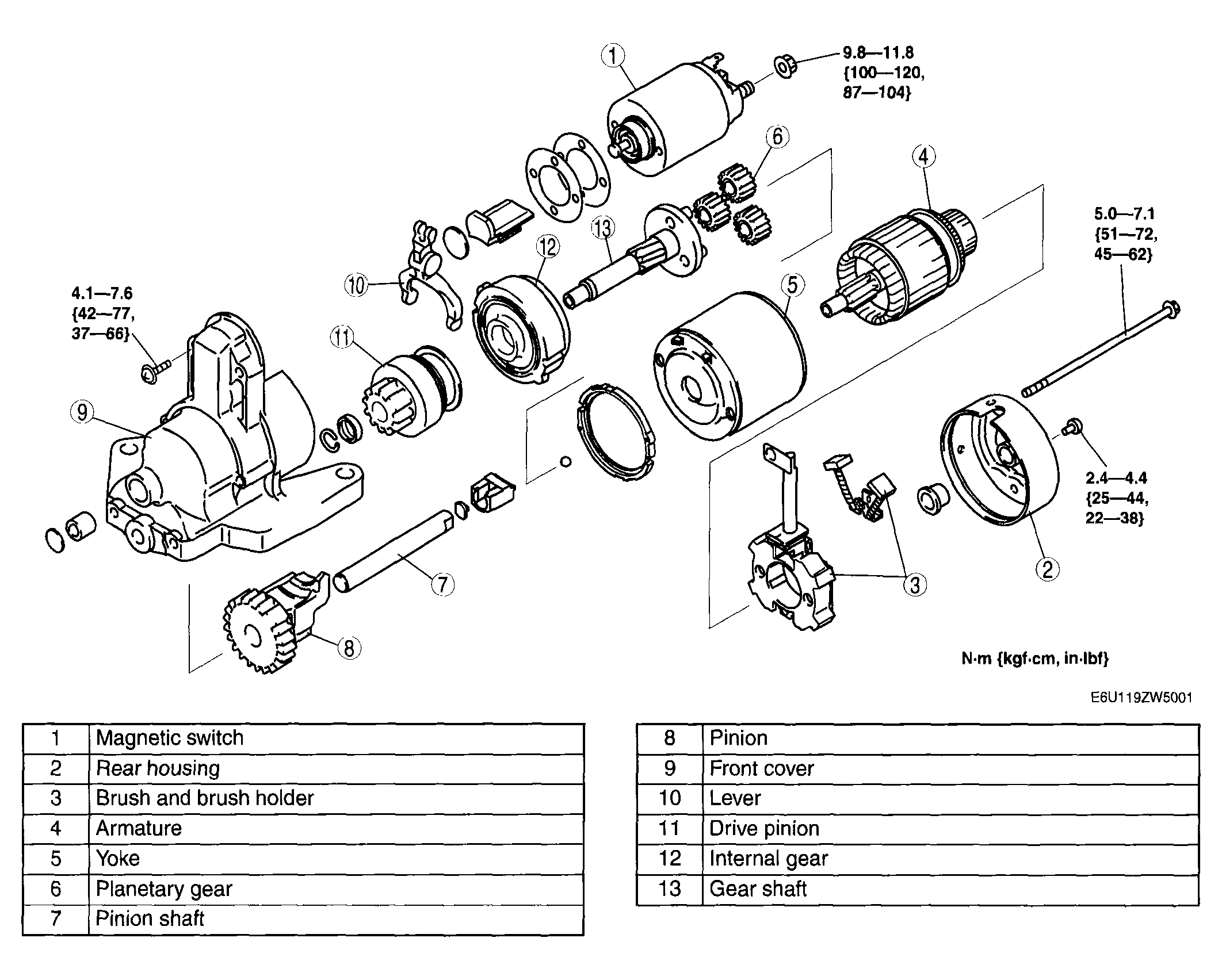

Fig 1: Exploded View Of Starter & Torque Specification (L3)

Courtesy of MAZDA MOTORS CORP.

AJ

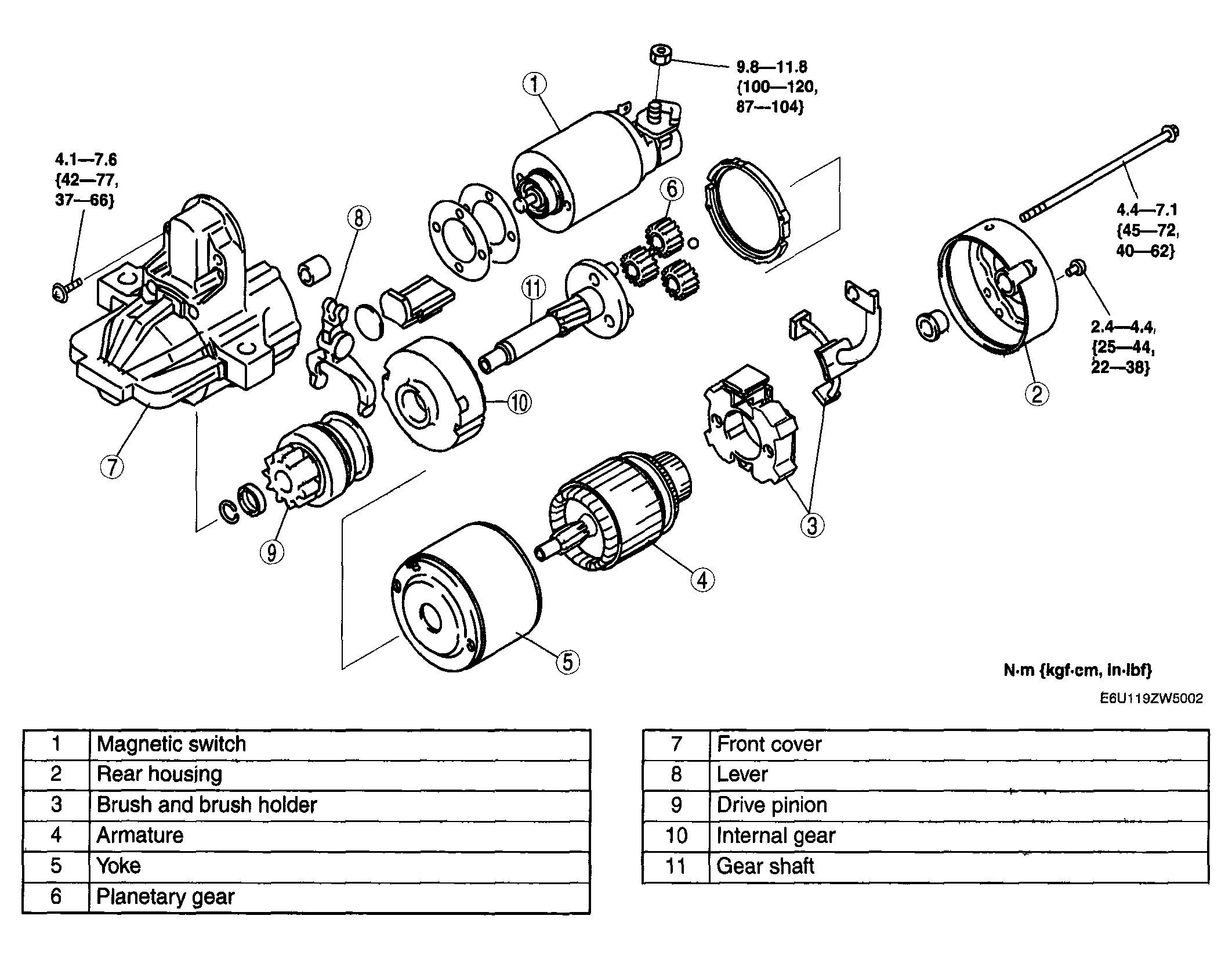

Fig 2: Exploded View Of Starter & Torque Specification (AJ)

Courtesy of MAZDA MOTORS CORP.
