Horn Removal/Installation

  1. Disconnect the negative battery cable.
  2. Bend the mud guard.
  3. Remove in the order indicated in the table.

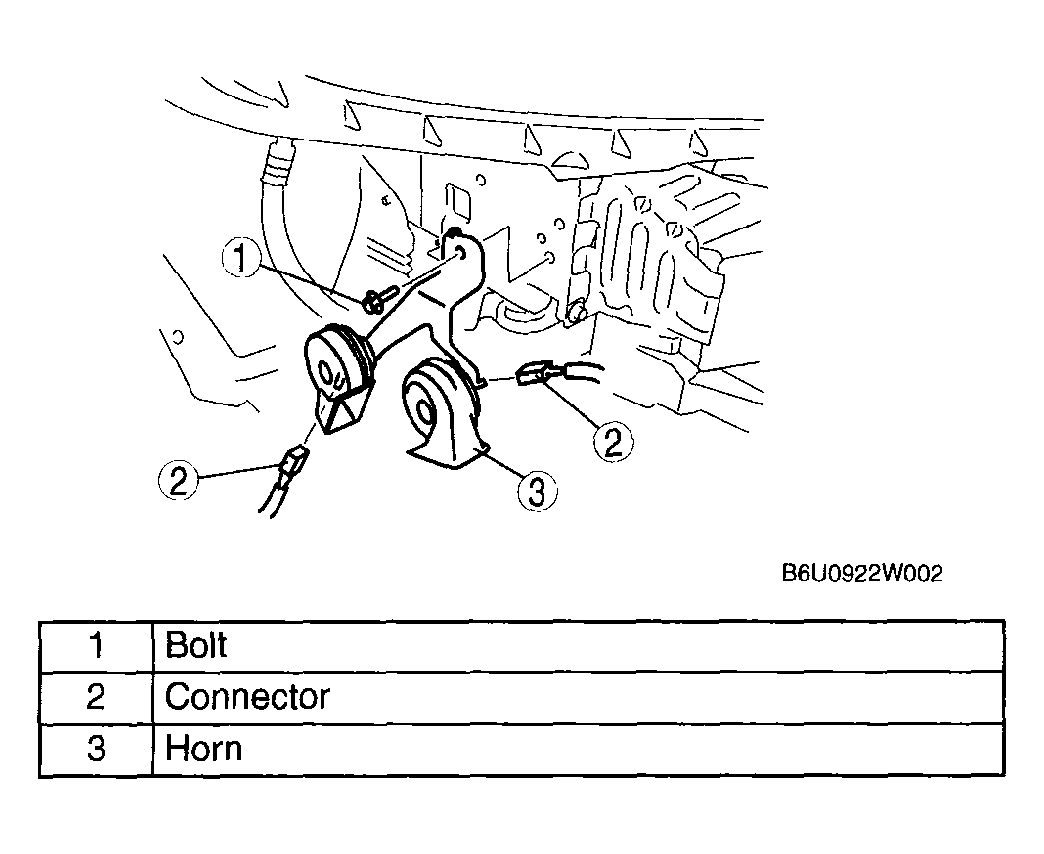

    Fig 1: Removing Horn
    G04327800Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
