Locknut Removal Note

  1. Knock the crimped portion of the locknut outward using a small cape chisel and a hammer.
  2. Lock the hub by applying the brakes.
  3. Remove the locknut.

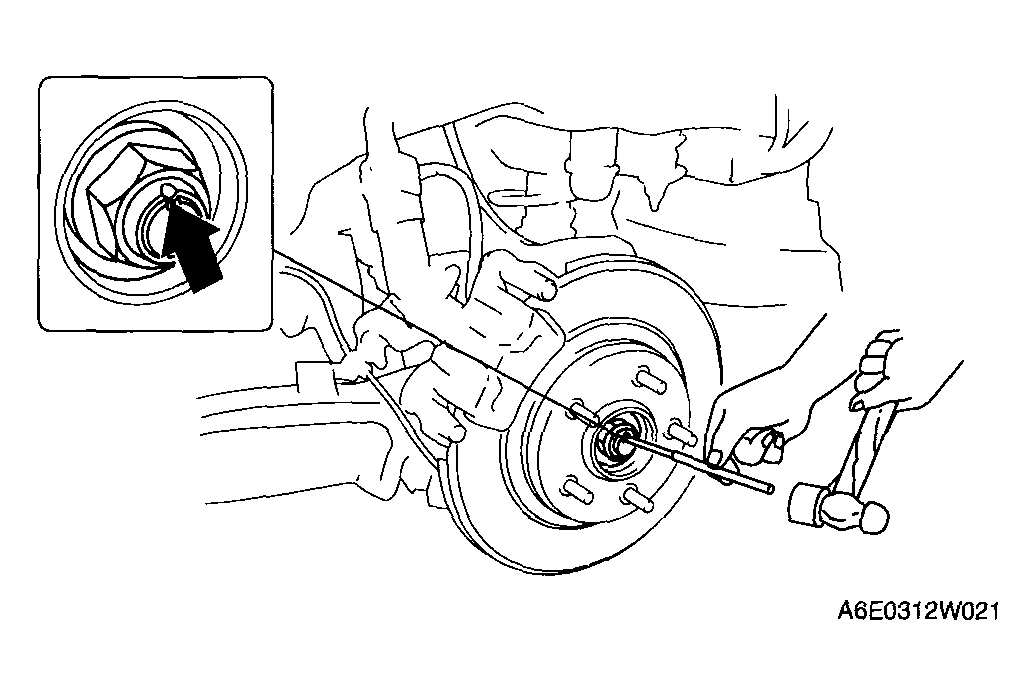

    Fig 1: Removing Locknut Using Chisel And Hammer
    G04325569Courtesy of MAZDA MOTORS CORP.
