ABS Sensor Rotor Installation Note

Set the SST as shown in the figure.
CAUTION:
- Position the SST so that marking B faces the bottom.

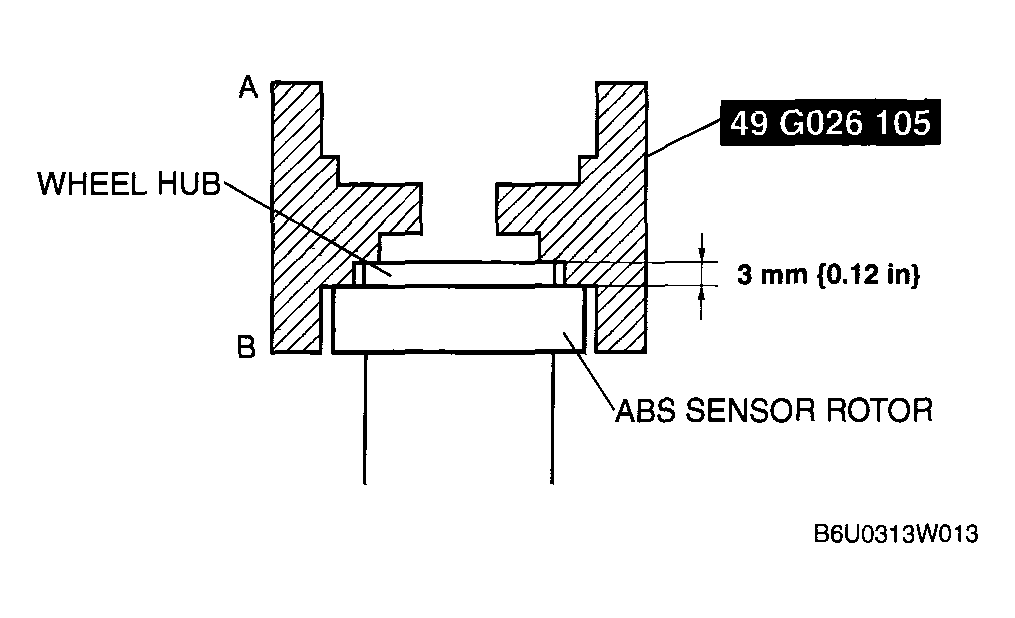

  Fig 1: Installing Wheel Hub Using SST
  Courtesy of MAZDA MOTORS CORP.
Press on the new sensor rotor using the SST and a press.

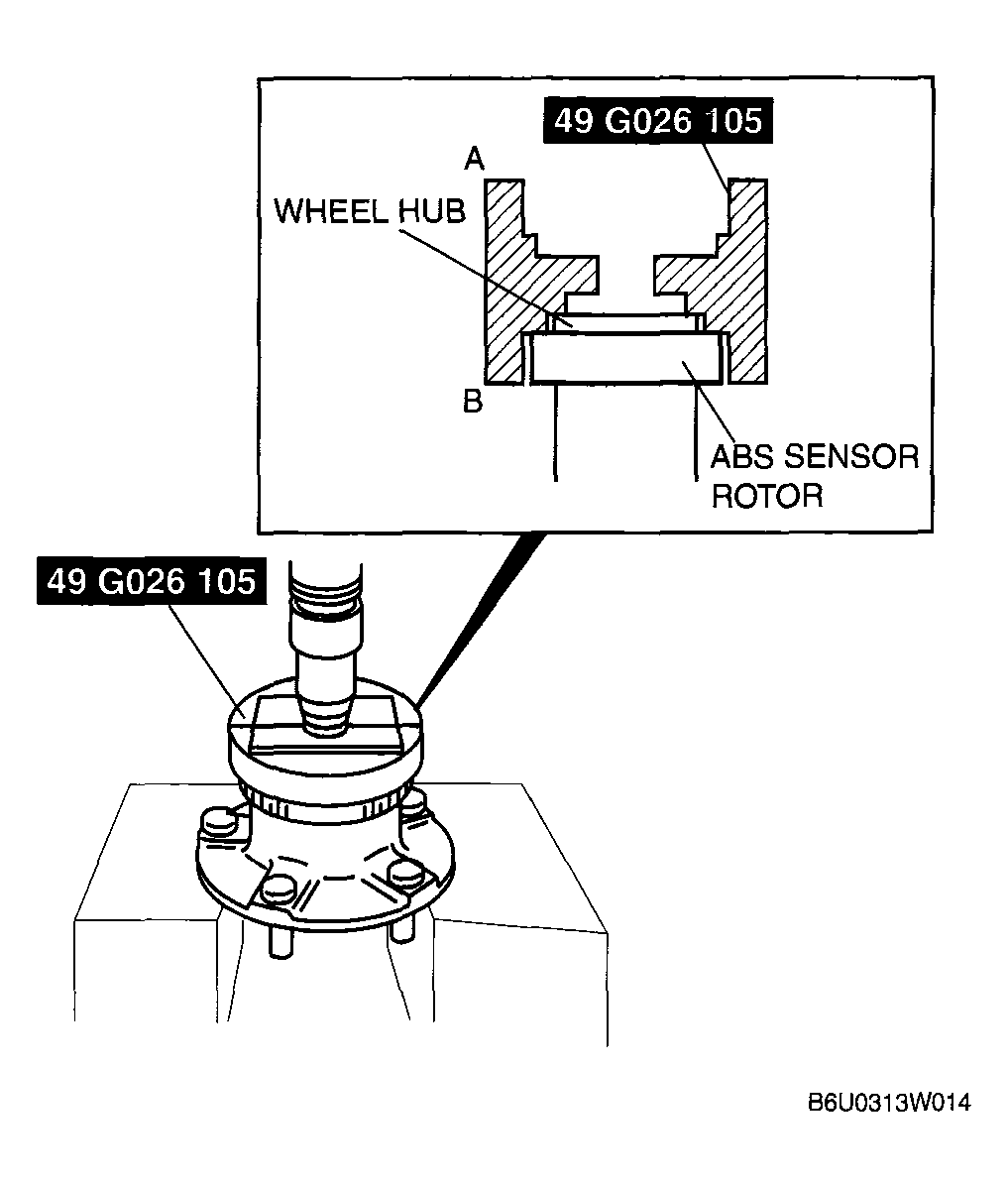

Fig 2: Pressing ABS Sensor Rotor Using SST
Courtesy of MAZDA MOTORS CORP.
