Electronic AWD Control System Wiring Diagram

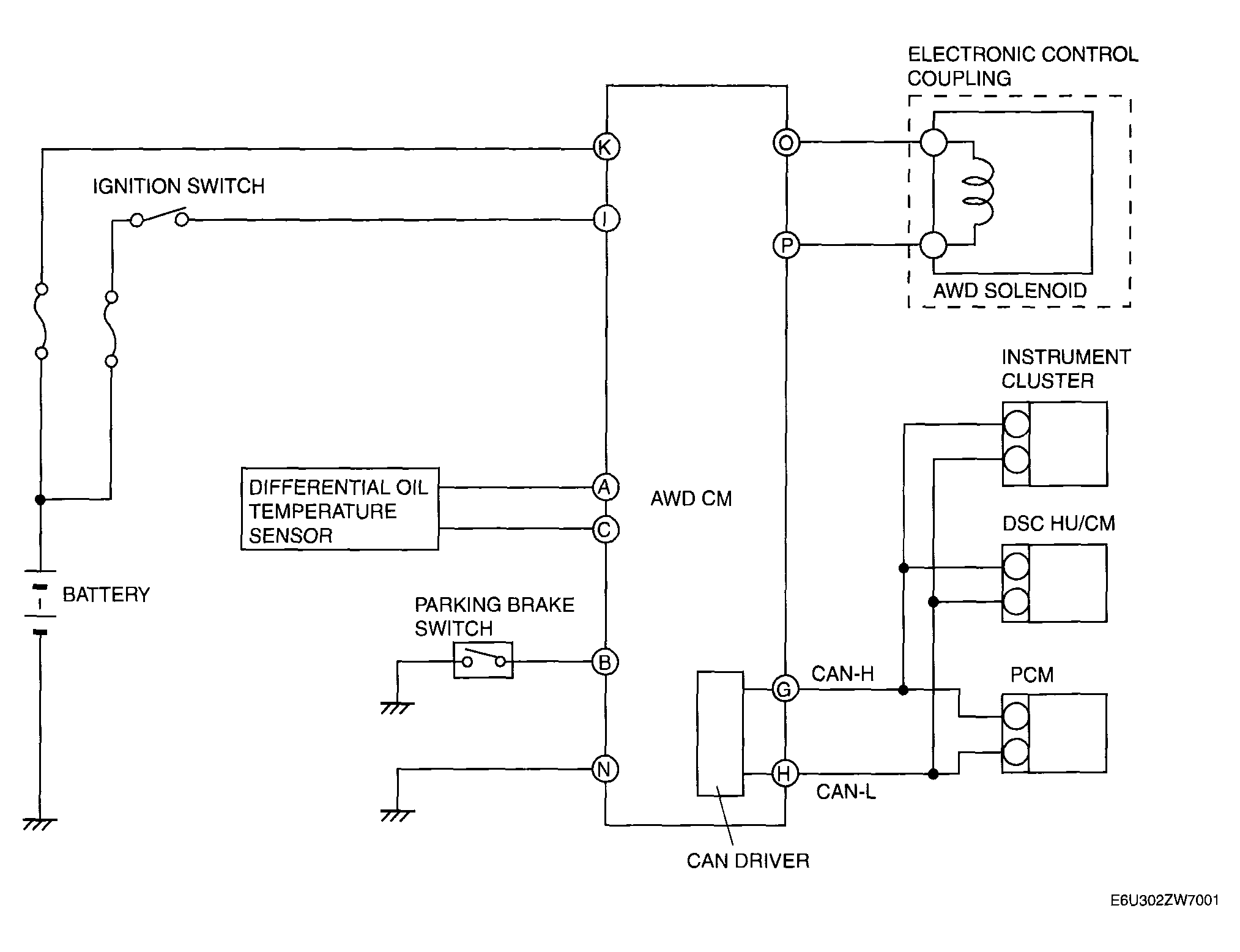

Fig 1: Electronic AWD Control System Wiring Diagram

G04325538

Courtesy of MAZDA MOTORS CORP.
