Rear Drive Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

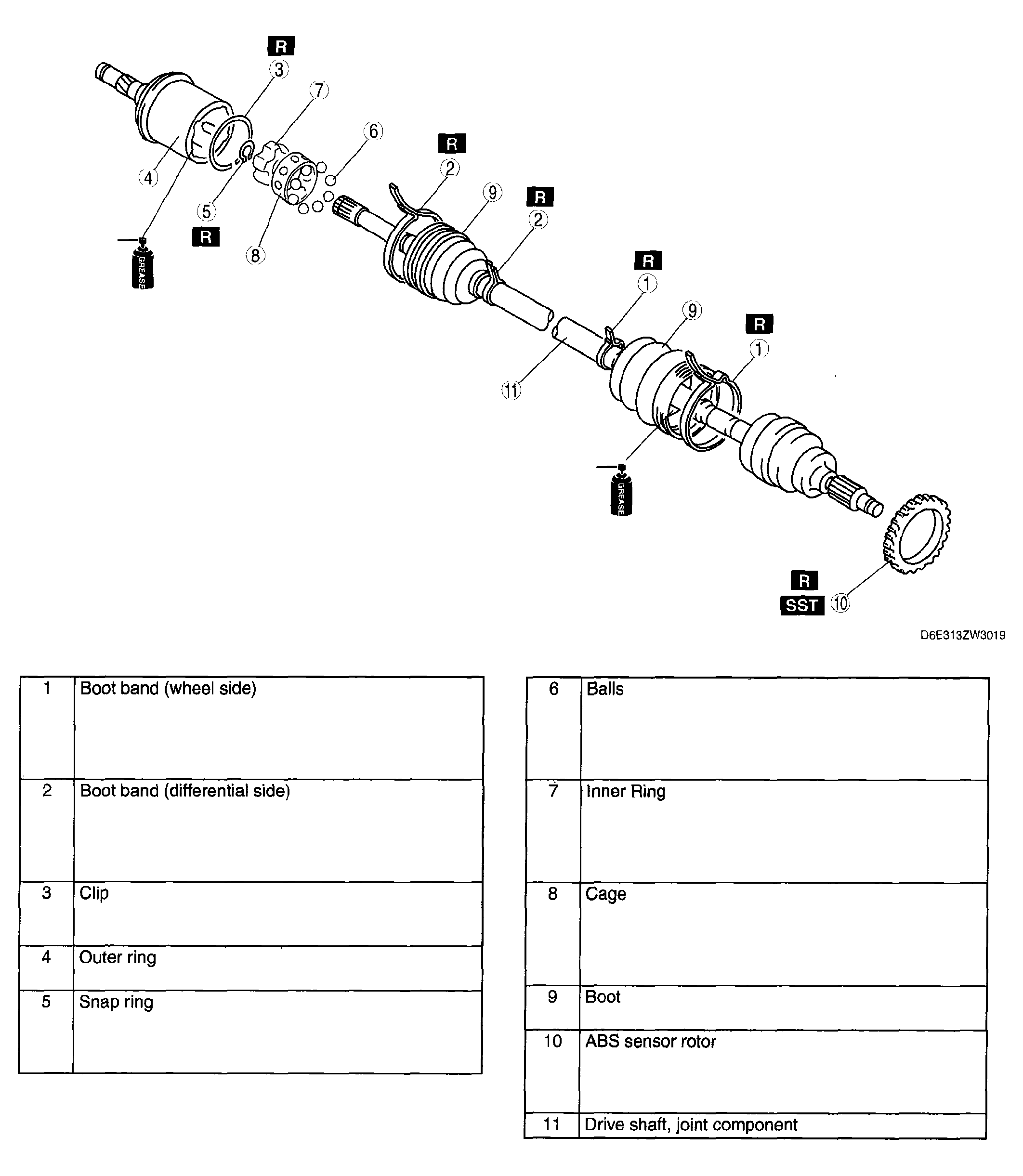

    Fig 1: Rear Drive Shaft Assembly
    G04325668Courtesy of MAZDA MOTORS CORP.
