ABS Sensor Rotor Assembly Note

  1. Install the ABS sensor rotor to the drive shaft using the SSTs  .

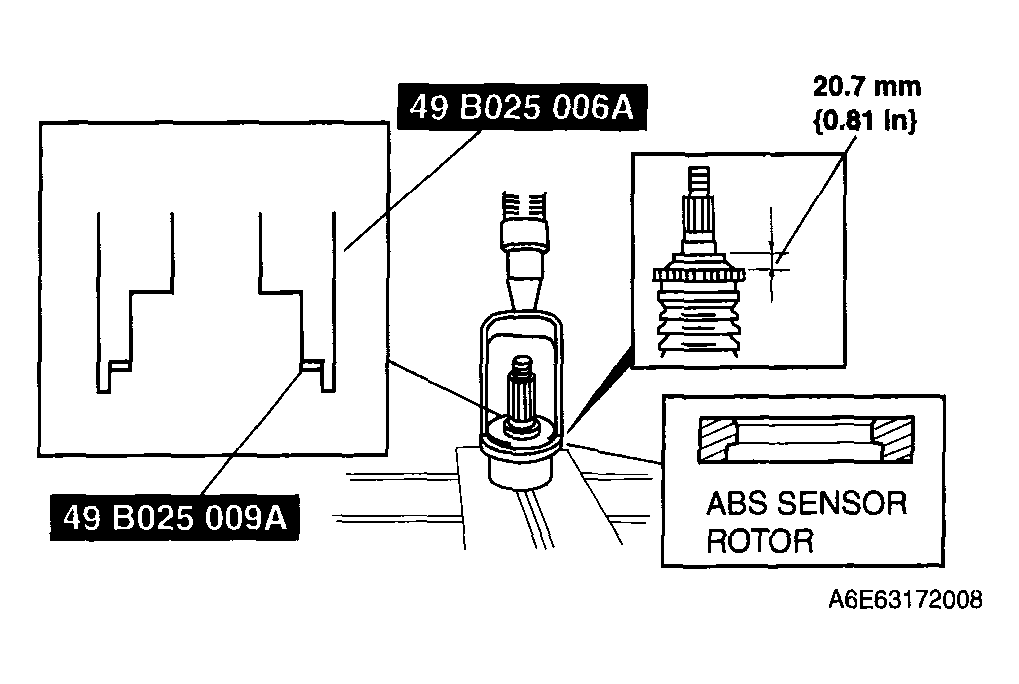

    Fig 1: Installing ABS Sensor To Drive Shaft
    G04325672Courtesy of MAZDA MOTORS CORP.
