Front Drive Shaft Pre-Inspection

  1. Inspect the dust boot on the drive shaft for cracks, damage, leaking grease, and looseness in the boot band.
  2. Inspect the drive shaft for bends, cracks, and wear in the joint or splines.
    • Repair or replace the drive shaft or boot/band as necessary.

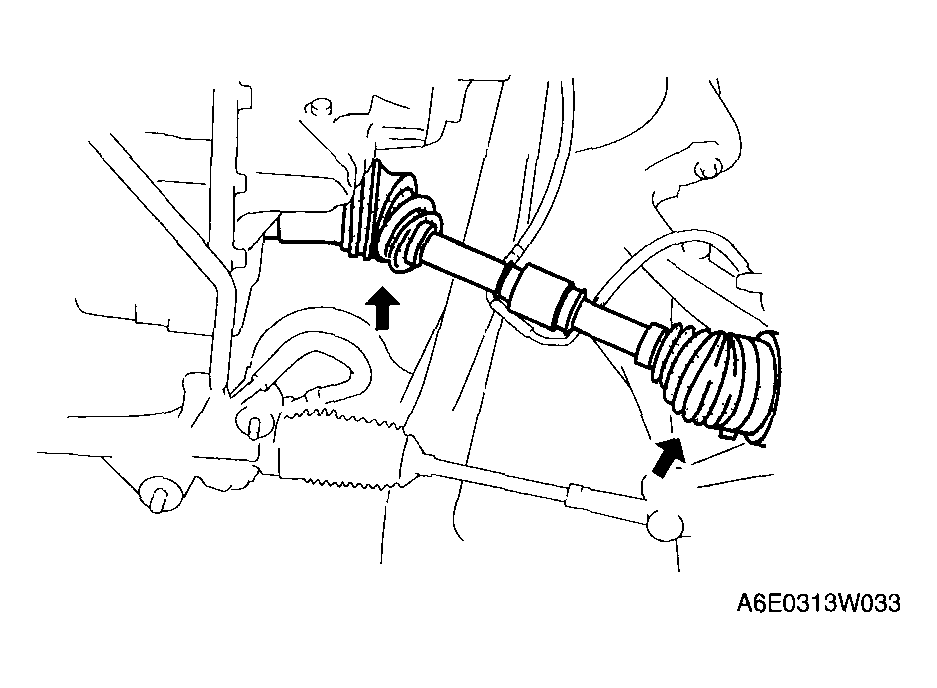

      Fig 1: Inspecting Dust Boot On Drive Shaft Cracks
      G04325628Courtesy of MAZDA MOTORS CORP.
