Dynamic Damper Assembly Note

  1. Install the dynamic damper as shown in the figure.

    Standard length

    287.7-293.7 mm {11.33-11.56 in}

  2. Install the new boot band onto the dynamic damper.

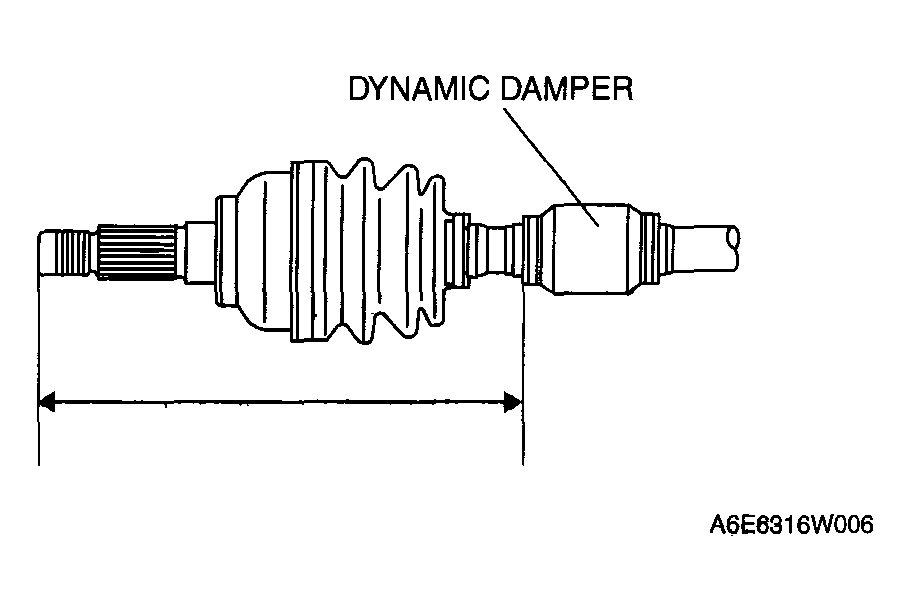

    Fig 1: Dynamic Damper Assembly
    G04325651Courtesy of MAZDA MOTORS CORP.
