Boot Disassembly Note

NOTE:
  • The wheel side boot does not need to be removed unless replacing it or the ball joint and shaft component.
  • Do not strip the tape until the boot is assembled.
  1. Wrap the shaft splines with tape.
  2. Remove the boot.

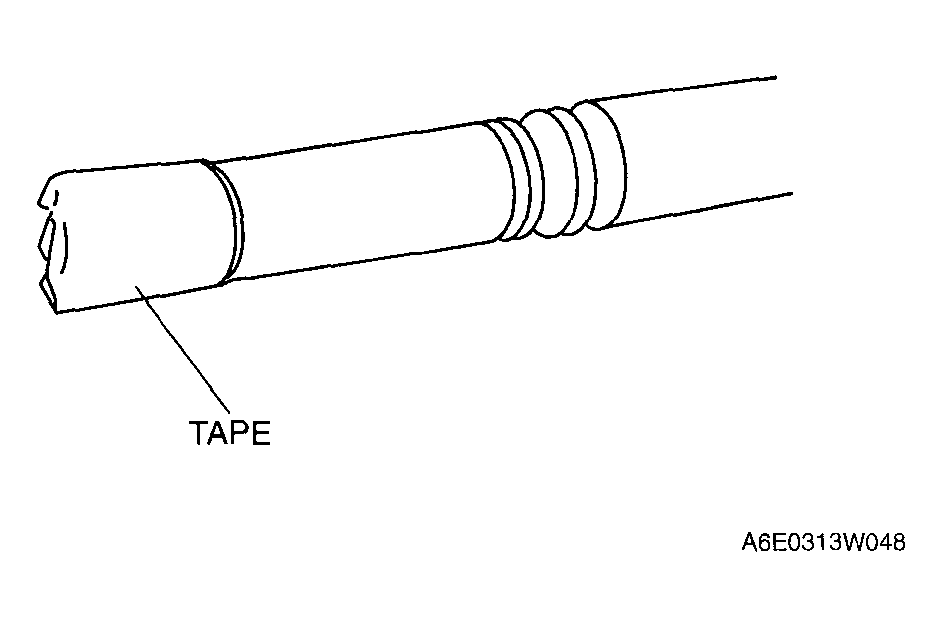

    Fig 1: Removing Shaft Splines With Tape
    G04325649Courtesy of MAZDA MOTORS CORP.
