DTC C1095, C1096 [Abs/TCS]: Notes
DTC C1095, C1096 [ABS/TCS] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC C1095, C1096 |

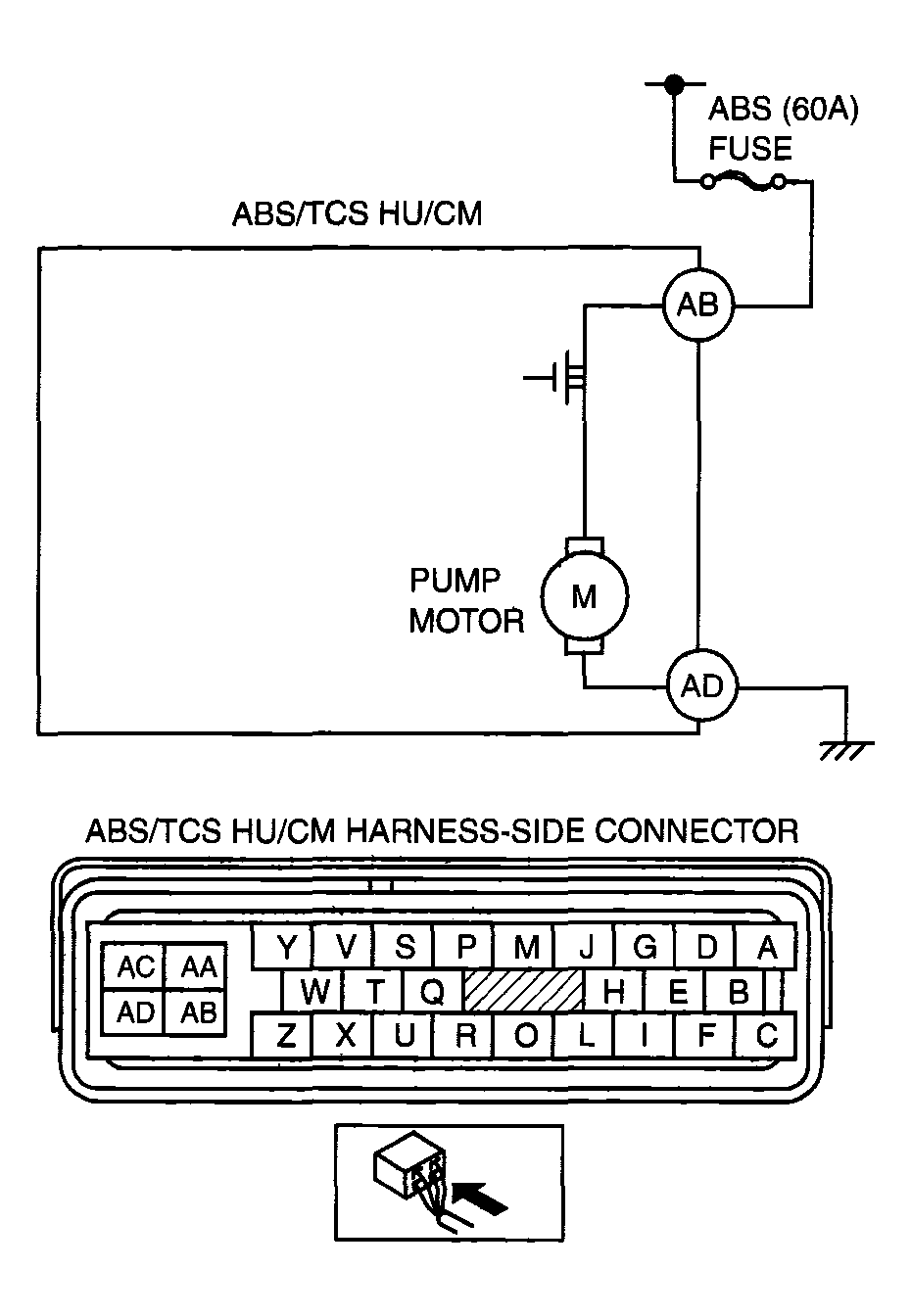

Motor relay pump motor |
| DETECTION CONDITION |
- C1095:
- ABS motor stuck OFF when vehicle is started or during ABS/TOS operation, ABS motor ON is commanded.
- C1096:
- ABS motor stuck OFF when vehicle is started or during ABS/TCS operation, ABS motor ON is commanded.
- Motor monitor ON signal is not input after specified time when the motor signal is switched from ON to OFF by ABS/TCS HU/CM.
|
| POSSIBLE CAUSE |
- Open circuit, or short to power supply or short to ground of motor relay and/or ABS motor in ABS/TCS HU/CM
- Stuck motor relay and/or ABS motor
- Open circuit of ABS motor power supply
- Open circuit of ABS motor ground
|
 Courtesy of MAZDA MOTORS CORP.
|
