Driver's Side and Passenger's Side

  1. Disconnect the power window motor connector.
  2. Apply battery positive voltage to the power window motor terminals E and F and inspect the operation the power window motor operation.
    • If there is any malfunction, replace the power window motor.
      MOTOR OPERATION REFERENCE

      Motor operation Terminal
      F E
      UP GND B+
      DOWN B+ GND

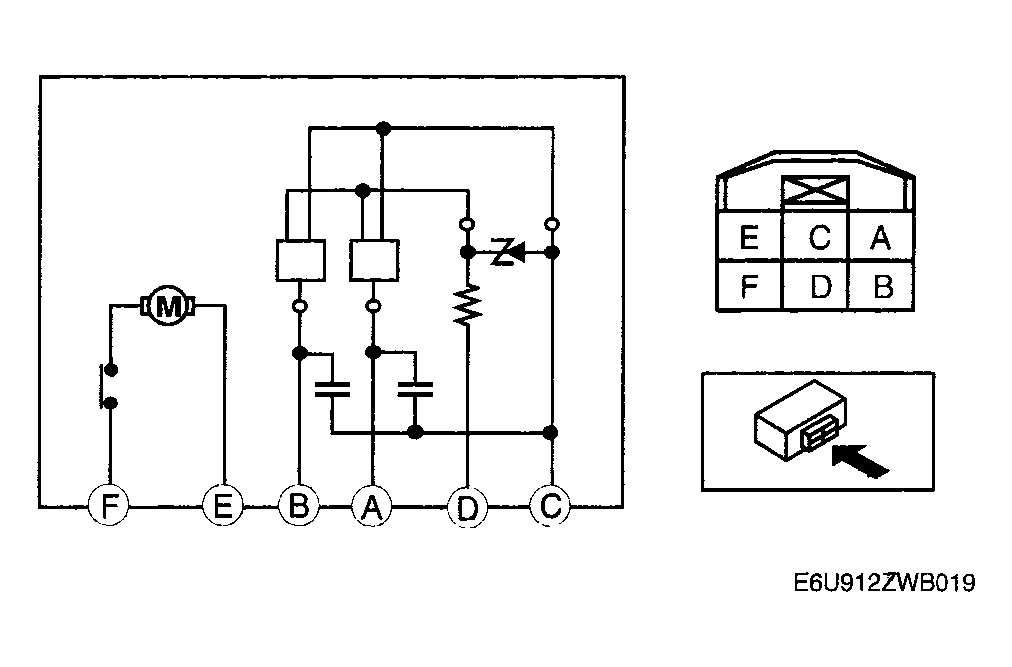

      Fig 1: Identifying Power Window Motor Connector
      G04327179Courtesy of MAZDA MOTORS CORP.
  3. Apply battery positive voltage  to the power window motor terminal D and connect terminal C to ground.
  4. Measure the voltage at terminal B and A while performing Step  3.
    • If there is any malfunction, replace the power window motor.

      Voltage

      Pulse wave: MAX. 5 V, MIN. 0 V
