Seat Warmer Switch Inspection

  1. Inspect for continuity between the seat warmer switch terminals using an ohmmeter.
    • If not as specified, replace the seat warmer switch.

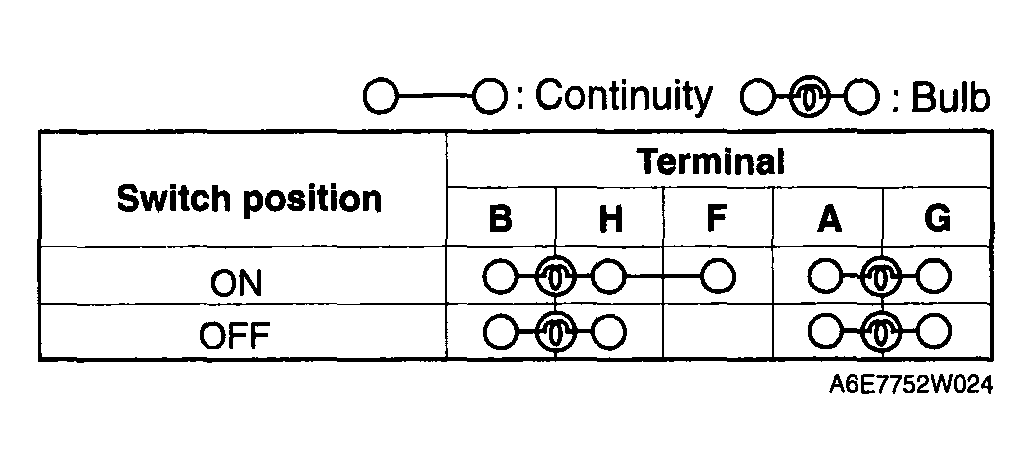

      Fig 1: Seat Warmer Switch Continuity Reference Chart
      G04327291

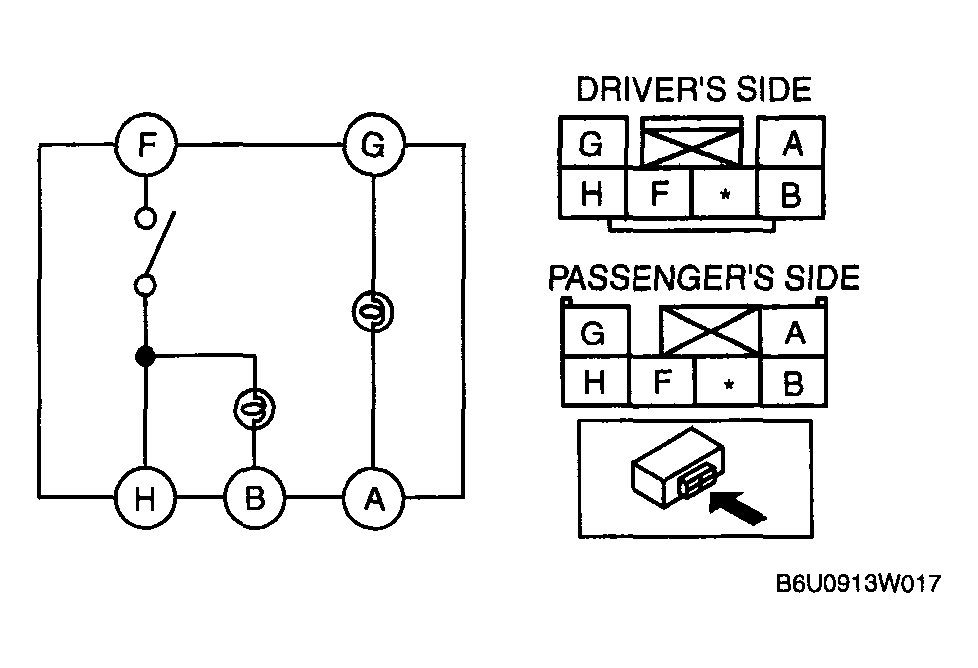

      Fig 2: Inspecting For Continuity Between Seat Warmer Switch Terminals
      G04327292
