Front Door Latch And Lock Actuator Removal/Installation

  1. Remove the front door unit.
  2. Remove the screws, then remove the front door latch and door lock actuator.
  3. Install in the reverse order of removal.

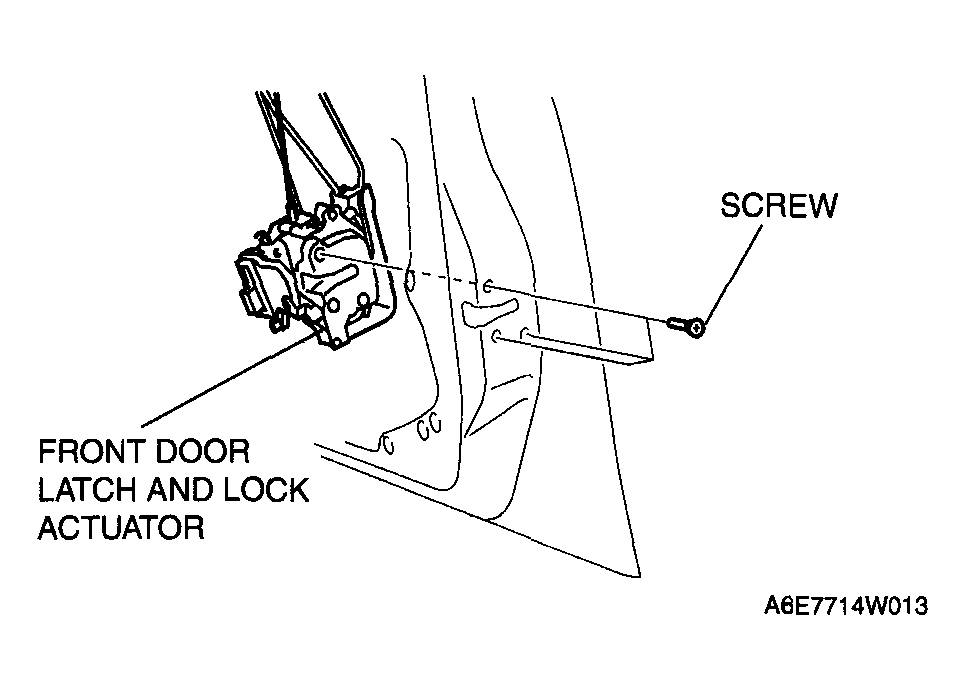

    Fig 1: Front Door Latch And Door Lock Actuator Screw
    G04327311Courtesy of MAZDA MOTORS CORP.
