Selector Lever Disassembly/Assembly

  1. Disassemble in the order shown in the figure.
  2. Assemble in the reverse order of disassembly.

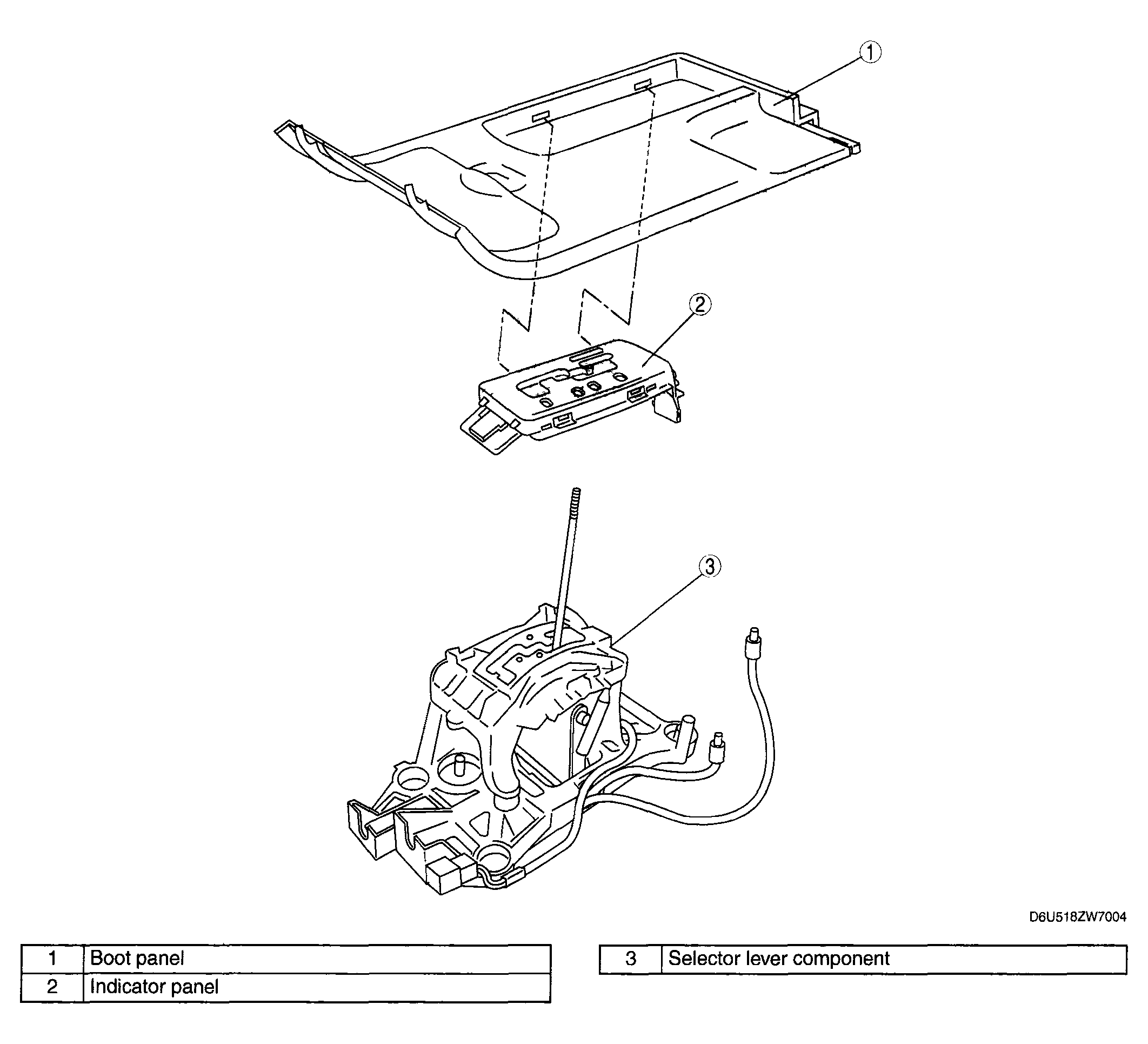

    Fig 1: Selector Lever Assembly
    G04326493Courtesy of MAZDA MOTORS CORP.
