Selector Lever Component Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts.
    1. Battery and battery tray
    2. Air cleaner component (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3] ) (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [AJ] )
    3. Center console
    4. Dashboard completely (See DASHBOARD REMOVAL/INSTALLATION. )
    5. SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION )
    6. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL [L3, AJ] ) (See CLIMATE CONTROL UNIT INSTALLATION [L3, AJ] )
    7. Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION [L3, AJ] )
  3. Remove in the order shown in the figure.
  4. Install in the reverse order of removal.

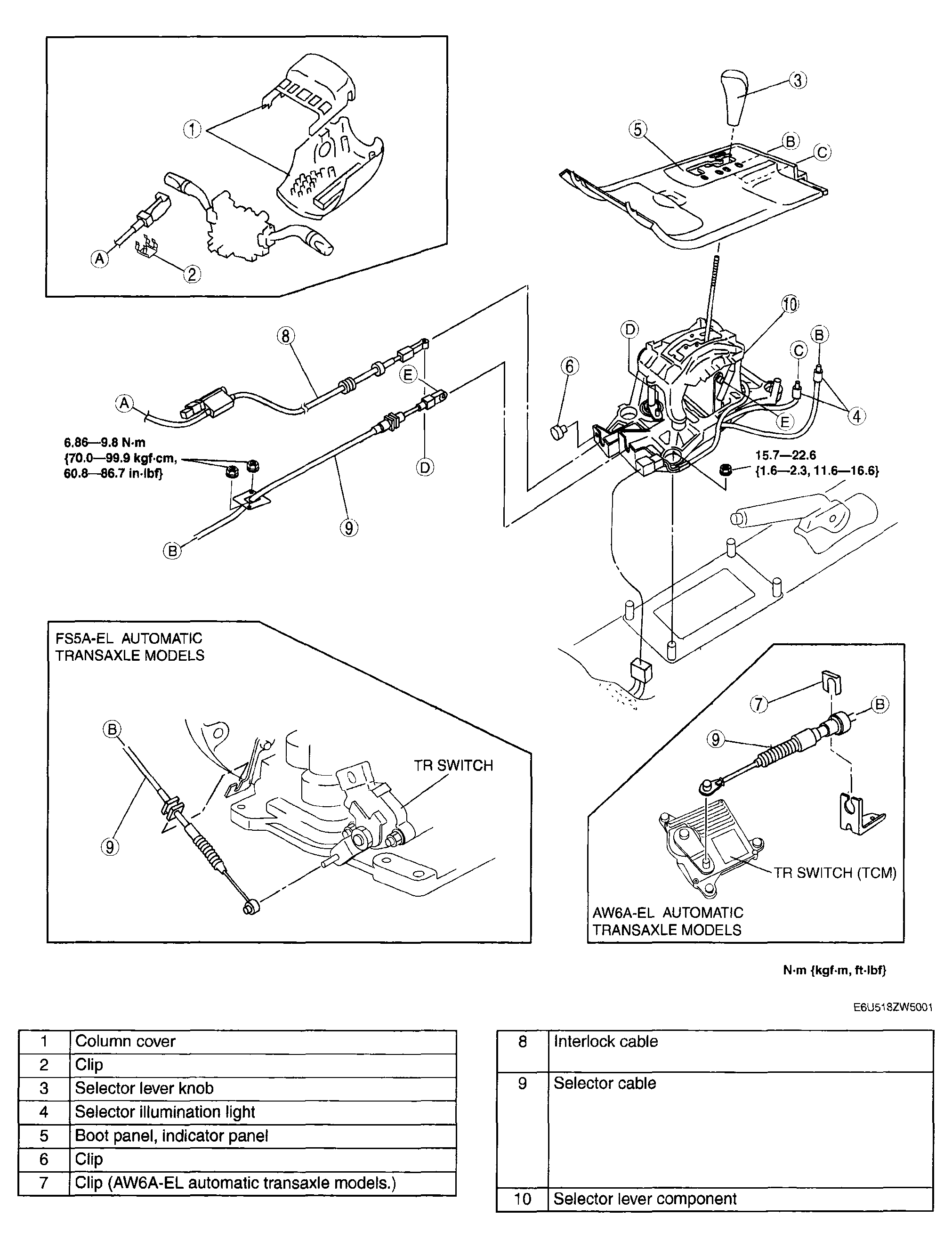

    Fig 1: Selector Lever Components & Torque Specification
    G04326465Courtesy of MAZDA MOTORS CORP.
