Interlock Cable Inspection

Turn the ignition switch to the ON position. (Engine off)
Remove the clip of the selector lever base plate, then remove the interlock cable from the U-groove.

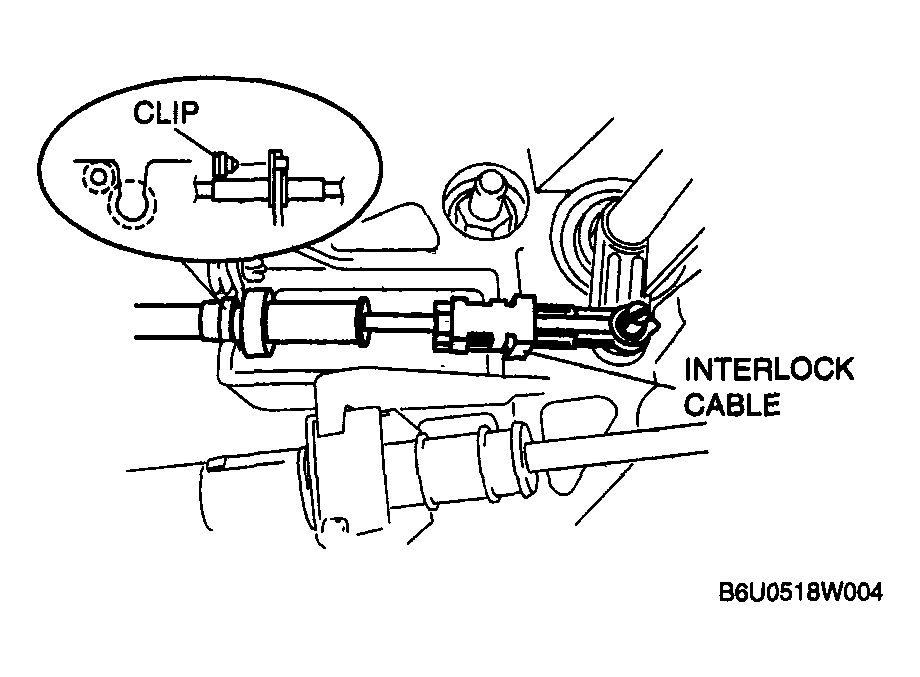

Fig 1: Locating Interlock Cable & Clip
Courtesy of MAZDA MOTORS CORP.
Remove the interlock cable from the selector lever.

Fig 2: Locating Interlock Cable
Courtesy of MAZDA MOTORS CORP.
Verify that the interlock cable moves freely with the brake pedal depressed.
- If there is any malfunction, inspect the interlock cable for abnormal winding. If any abnormal winding found, correct it.
- If the malfunction persists after correcting the interlock cable winding, replace it.

  Fig 3: Checking Interlock Cable Movement
  Courtesy of MAZDA MOTORS CORP.
