Using SST

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

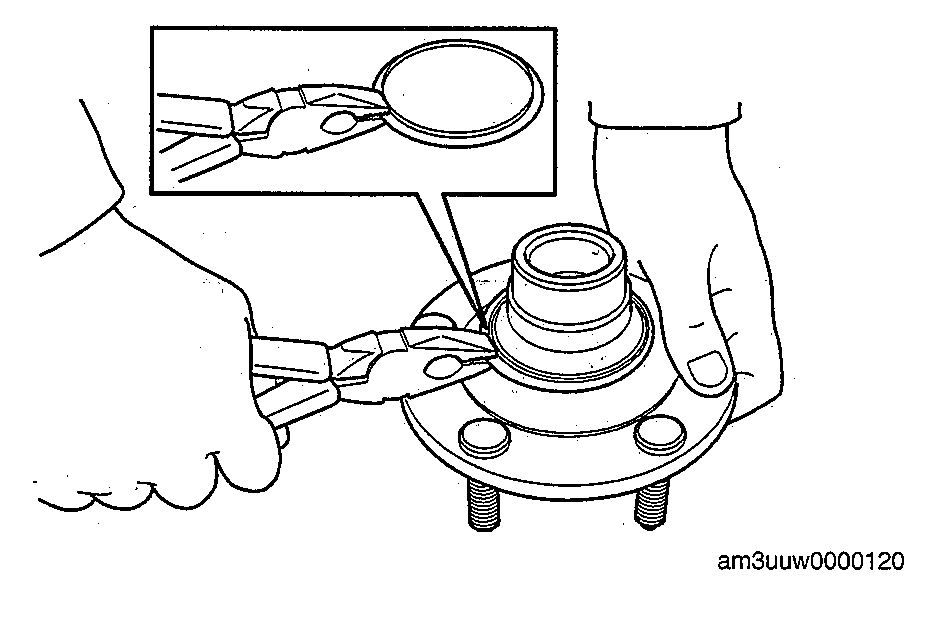

Remove the part as shown in the figure.

Fig 1: Using Pliers To Remove Part
Courtesy of MAZDA MOTORS CORP.

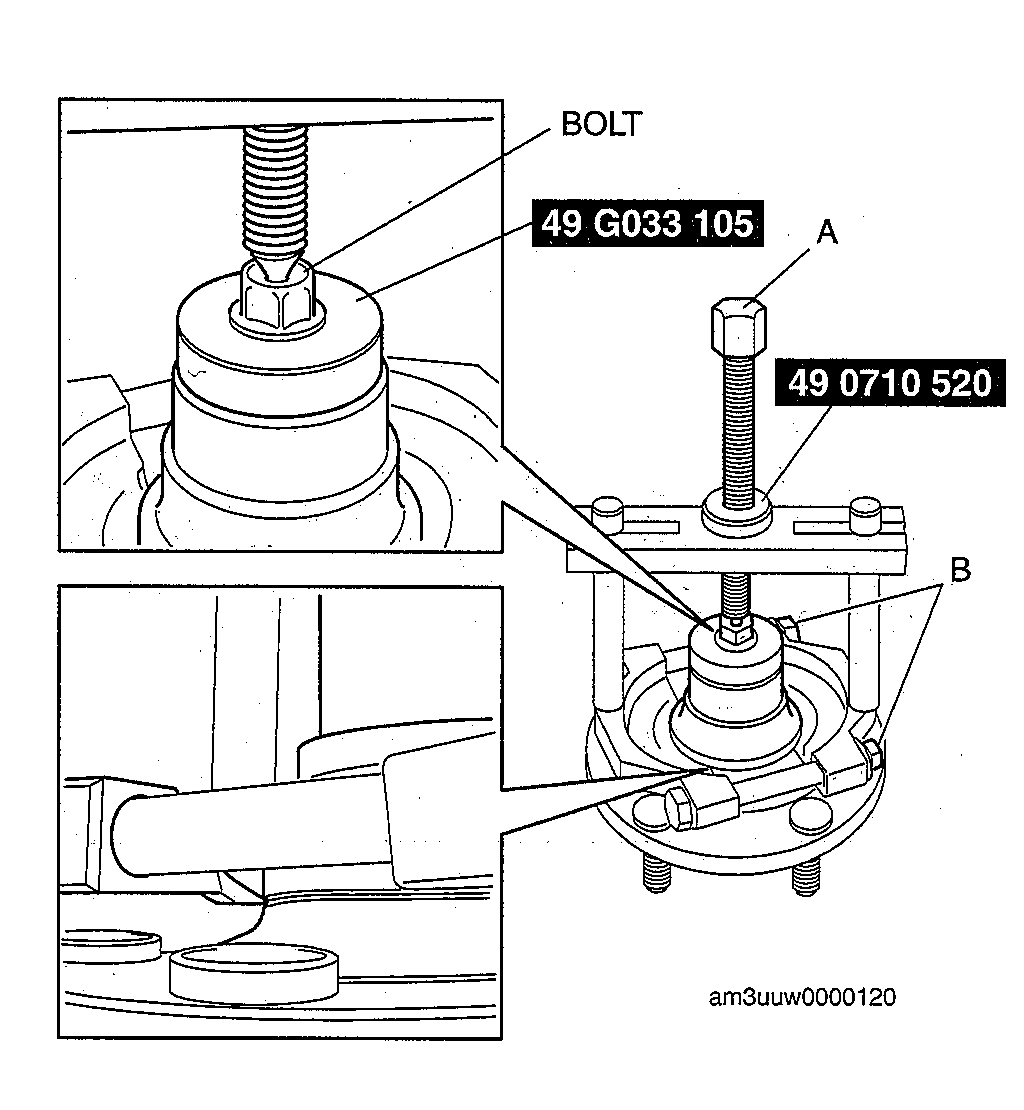

Position the SSTs and a spare bolt (M10 length 90 mm {3.5 in} or less) as shown in the figure.
CAUTION:
- When tightening section A, tighten section B securely because the engagement of the SST tab is shallow and it can come off easily.

  Fig 2: Proper Assembly Of SSTs & Components
  Courtesy of MAZDA MOTORS CORP.

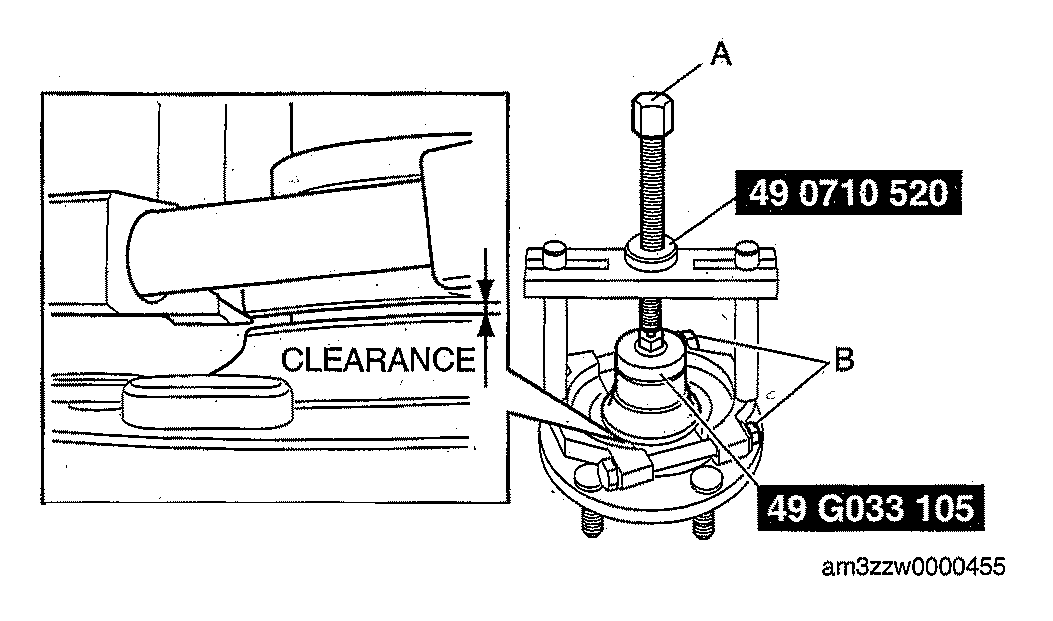

Tighten SST section A until the space between the bearing inner race and wheel hub component is 1-2 mm {0.04-0.07 in.}
Temporarily loosen SST section A and position the SST again.
Tighten SST section A and remove the bearing inner race.

Fig 3: View Of Clearance Space Between Bearing Inner Race & Wheel Hub Component
Courtesy of MAZDA MOTORS CORP.
