Airflow Mode Wire

WARNING: This page is about a different car, the 2008 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the airflow mode selector dial at defroster.
  2. Connect the airflow mode wire to airflow mode link.

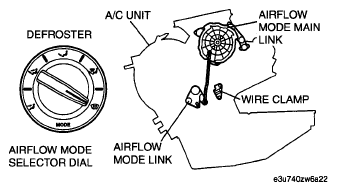

    Fig 1: Identifying Airflow Mode Selector Dial
    G04956409Courtesy of MAZDA MOTORS CORP.
  3. Install the airflow mode wire to the wire clamp as shown in the figure.
  4. Remove the screwdriver and verify that the airflow mode selector dial can move its full stroke.

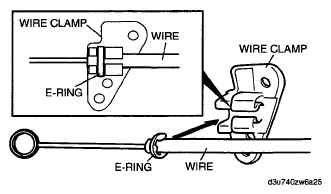

    Fig 2: Installing Air Mix Wire To Wire Clamp
    G04956408Courtesy of MAZDA MOTORS CORP.
