Front Fog Light Removal/Installation: Mazdaspeed3

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Slightly bend back the mudguard.
  4. Disconnect the connector.
  5. Remove the screws.
  6. Remove the front fog light.
  7. Install in the reverse order of removal.
  8. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING ).

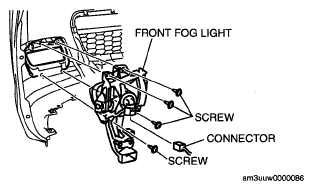

    Fig 1: View Of Front Fog Light - Mazdaspeed3
    G04957005Courtesy of MAZDA MOTORS CORP.
