Wiper Link No. 1 Assembly Note

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the wiper link No. 1 positioned as shown in the figure.

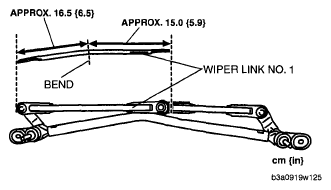

    Fig 1: Identifying Position Of Wiper Link
    G04957071Courtesy of MAZDA MOTORS CORP.
