Console Disassembly/Assembly

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

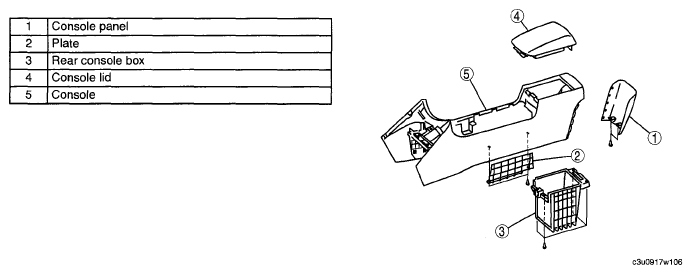

    Fig 1: Identifying Console Disassemble Order
    G04956939Courtesy of MAZDA MOTORS CORP.
