Woofer Inspection

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the audio amplifier and woofer is as indicated in the table.
- If not as specified in the table, replace the related wiring harnesses.

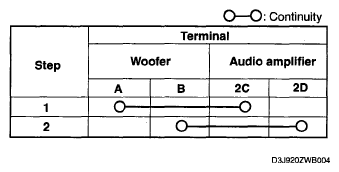

  Fig 1: Woofer And Audio Amplifier Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

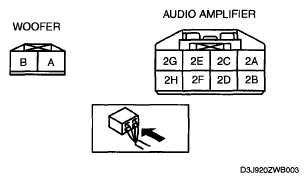

  Fig 2: Identifying Woofer And Audio Amplifier Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
