Starter Interlock Switch Inspection

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
  2. Disconnect the negative battery cable.
  3. Disconnect the starter interlock switch connector.
  4. Verify that the continuity is as indicated in the table using a tester.
    • If the continuity is not as indicated in the table, replace the starter interlock switch.

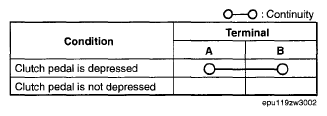

      Fig 1: Interlock Switch Continuity Reference Chart
      G04955153Courtesy of MAZDA MOTORS CORP.
      Fig 2: Identifying Starter Interlock Switch Connector Terminals
      G04955175Courtesy of MAZDA MOTORS CORP.
