Starter Disassembly/Assembly

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

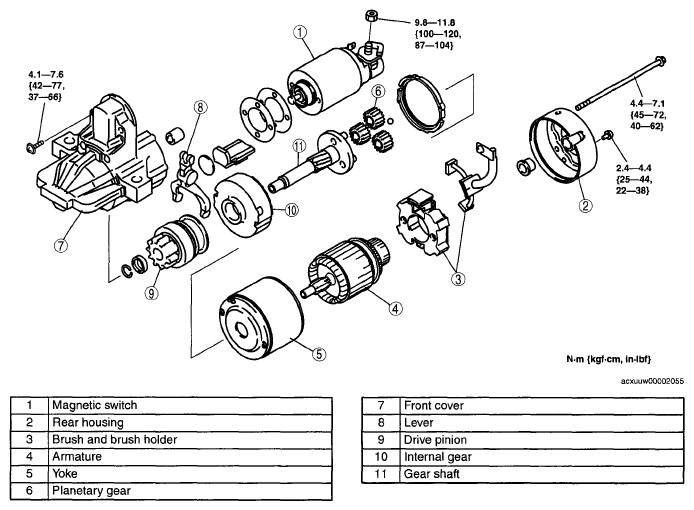

    Fig 1: Exploded View Of Starter With Torque Specifications
    G04955173Courtesy of MAZDA MOTORS CORP.
