Blower Motor Installation Note

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Position the blower motor projection upward and install the blower motor to the A/C unit.
CAUTION:
- To prevent damage to the sirocco fan, install the blower motor being careful that the blower motor does not interfere with the A/C unit. Also, another person must hold the blower motor at the installation position.

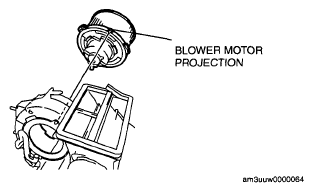

  Fig 1: Identifying Blower Motor Projection
  Courtesy of MAZDA MOTORS CORP.
