Master Cylinder Removal/Installation [L3 With TC]: Notes

WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
Disconnect the vacuum hose from the insulator pipe as shown in the figure.
Remove in the order indicated in the table.
Install in the reverse order of removal.

Fig 1: Disconnecting Vacuum Hose From Insulator Pipe
Courtesy of MAZDA MOTORS CORP.

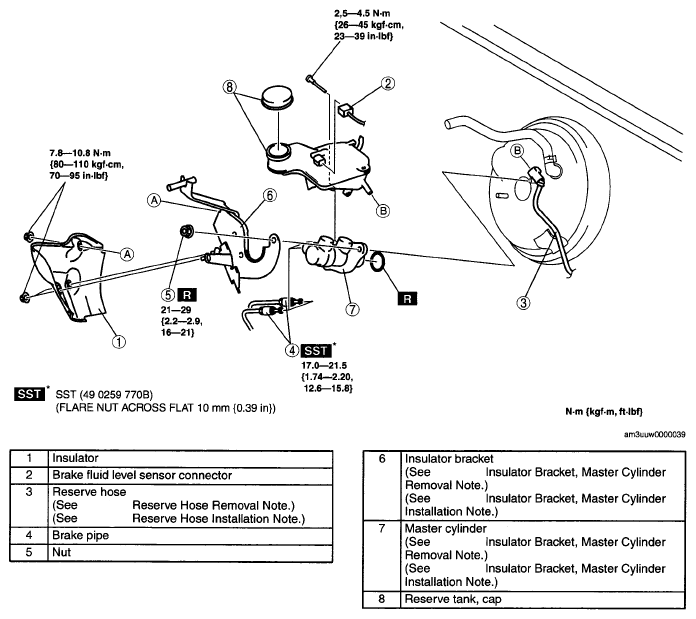

Fig 2: Master Cylinder Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
