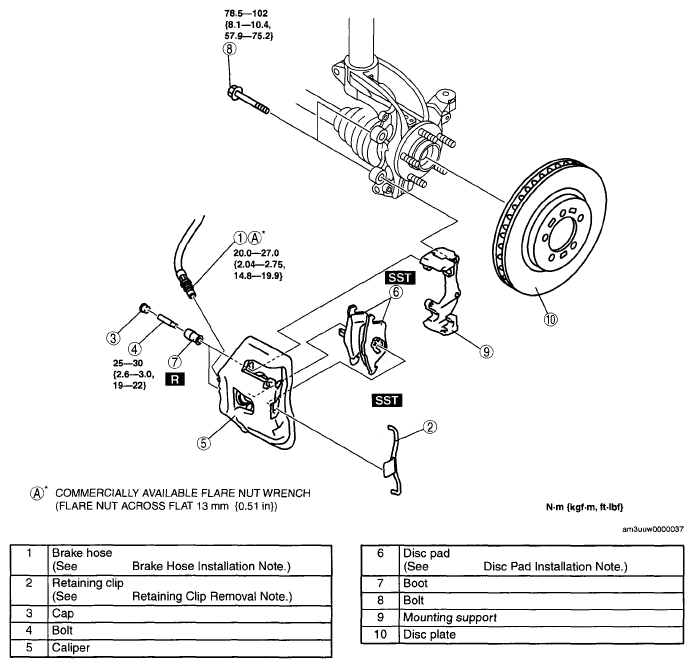

Front Brake (Disc) Removal/Installation [L3 With TC]: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, pump the brake pedal a few times and verify that the brakes do not drag.
Courtesy of MAZDA MOTORS CORP.
