Air Bleeding
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
NOTE:
- Keep the fluid level in the reserve tank at 3/4 full or more during the air bleeding.
- Begin air bleeding with the brake caliper that is furthest from the master cylinder.
Brake fluid type
SAE J1703, FMVSS 116 DOT3
- Remove the bleeder cap on the brake caliper, and attach a vinyl tube to the bleeder screw.
- Place the other end of the vinyl tube in a clear container and fill the container with fluid during air bleeding.
- Working with two people, one should pump the brake pedal several times and depress and hold the pedal down.

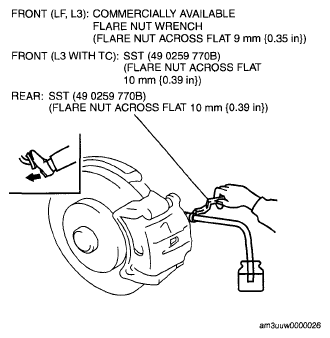

- While the brake pedal is depressed, the other should loosen the bleeder screw using the SST
or any commercially available flare nut wrench, drain out any fluid containing air bubbles, and tighten the bleeder screw.
Tightening torque
Front (LF, L3): 7-9 N.m {72-91 kgf.cm, 70-79 in.lbf}
Front (L3 WITH TC): 12-16 N.m {123-163 kgf.cm, 107-141 in.lbf} Rear: 12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
- Repeat Steps 3 and 4 until no air bubbles are seen.
- Perform air bleeding as described in the above procedures for all brake calipers.
- After air bleeding, inspect the following:
- Brake operation
- Fluid leakage
- Fluid level
