Dust Cover Installation Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the new and old dust covers and place alignment marks on the new dust cover.
  2. Align the marks on the new dust cover and rear knuckle.

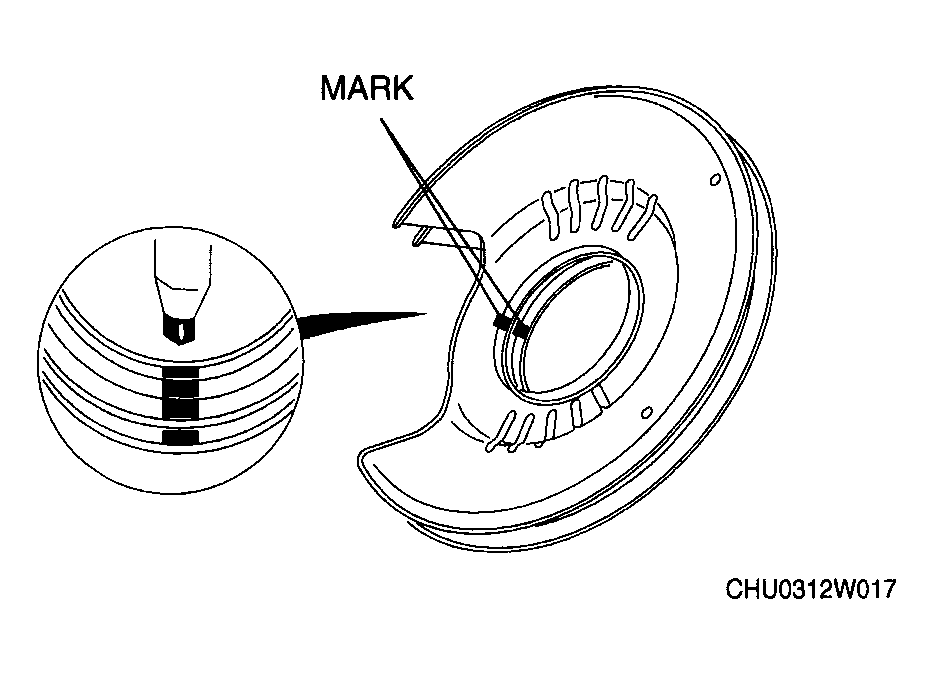

    Fig 1: Aligning Marks On New Dust Cover & Rear Knuckle
    G04318223Courtesy of MAZDA MOTORS CORP.
  3. Press the new dust cover onto the rear knuckle using the SSTs.

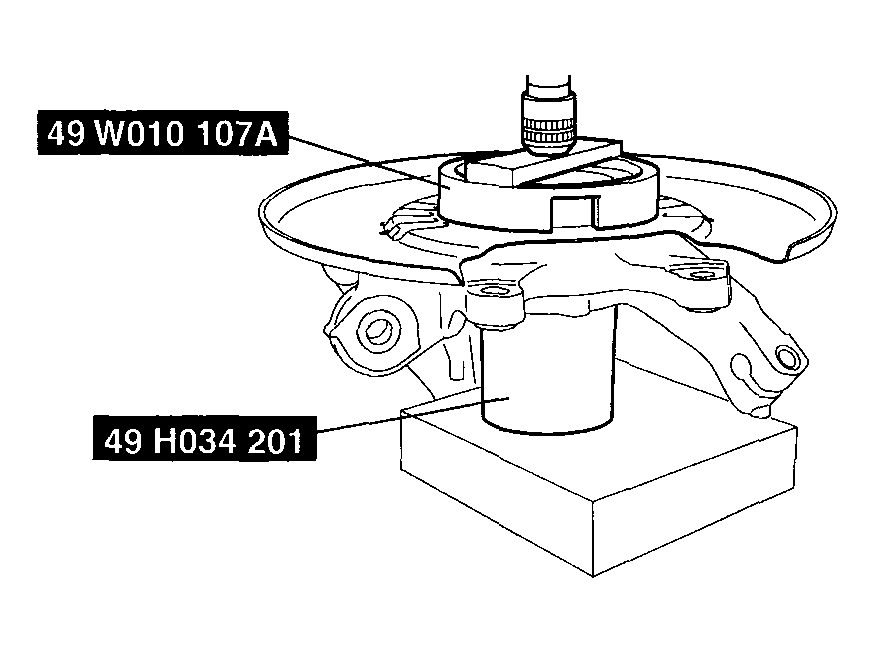

    Fig 2: Pressing New Dust Cover Onto Rear Knuckle Using SST's
    G04318224Courtesy of MAZDA MOTORS CORP.
