Propeller Shaft Installation Note
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Align the marks and install the propeller shaft.

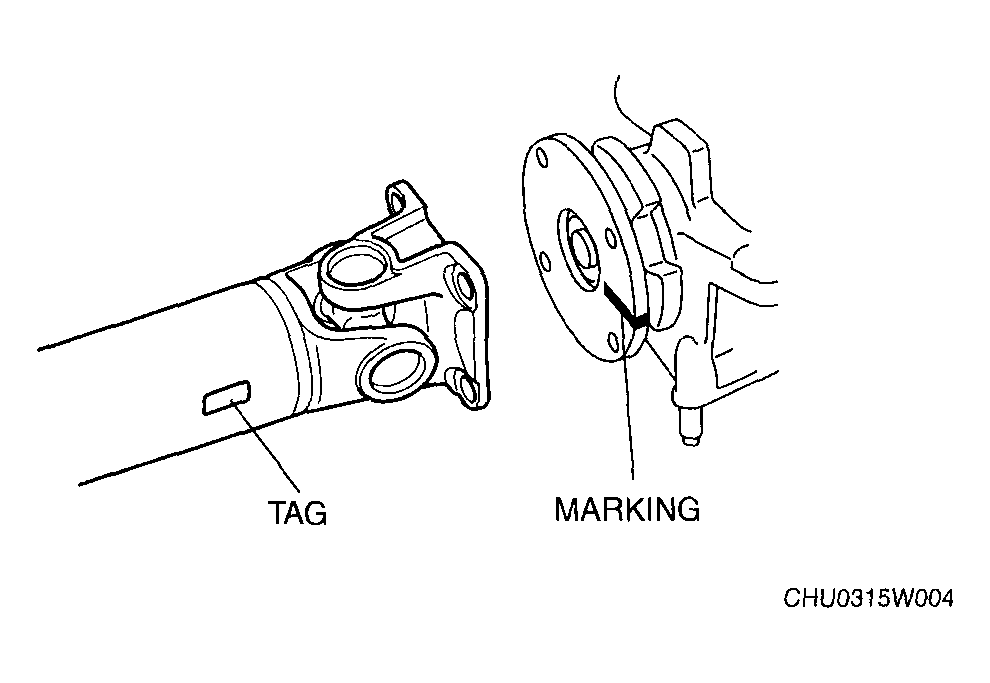

- When installing a new propeller shaft, align the differential companion flange mark with the tag on the propeller shaft and assemble.
Courtesy of MAZDA MOTORS CORP.
