Shim Installation Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

First, insert the 1 mm (0.039 in) thick shim into the shaft.

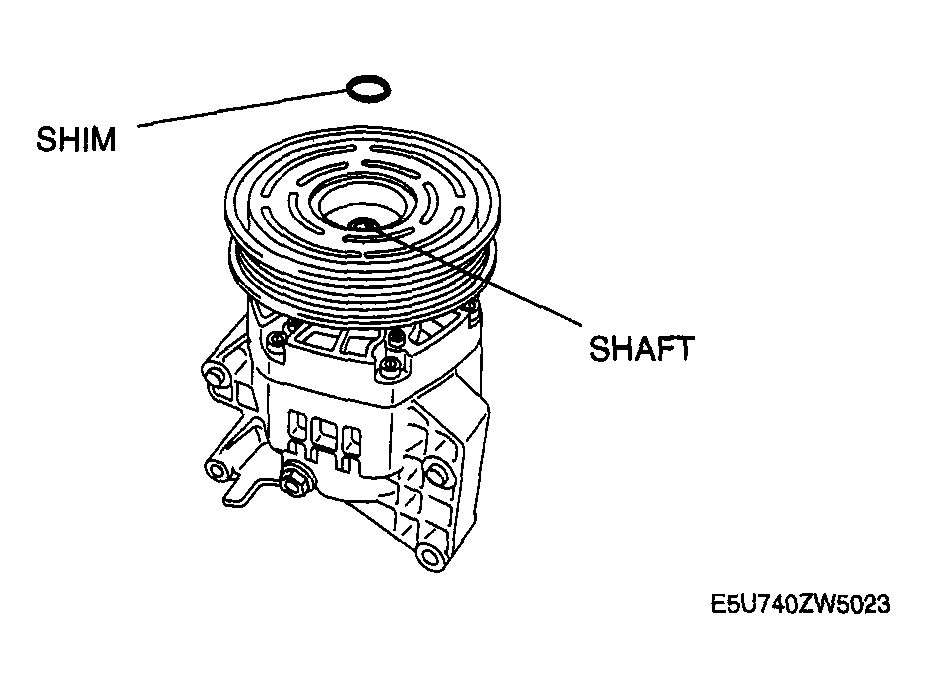

Fig 1: Inserting 1 MM Thick Shim Into Shaft
Courtesy of MAZDA MOTORS CORP.
